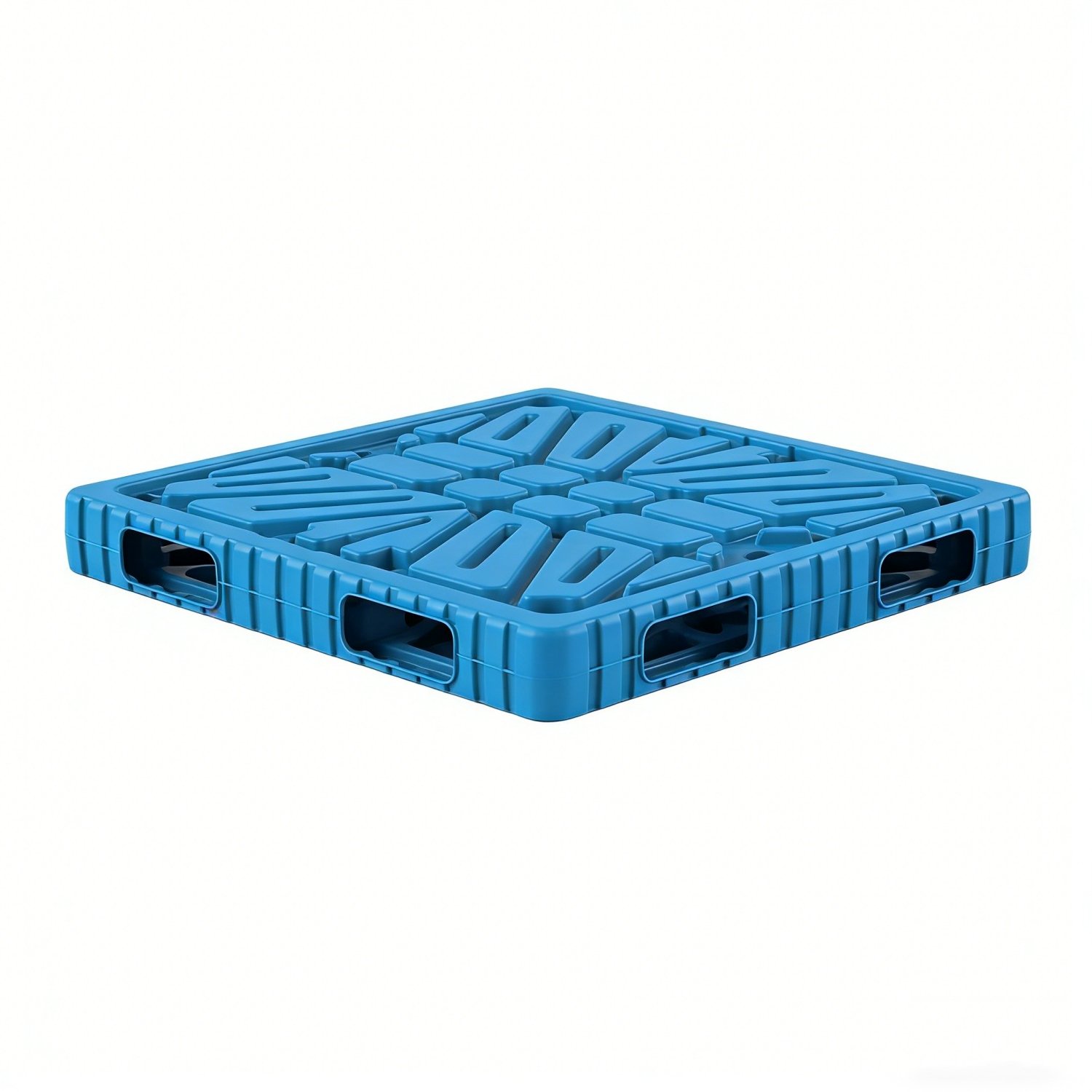

Blow Molding Plastic Pallet – 1200×1200 – Reversible

Product Specification

Materials	High Density Polyethylene(HDPE)
Dimensions (L×W×H mm)	1200mm × 1200mm × 150mm, Custom
Processes	Blow Molding
Weight	22kg
Reinforcement Bars	×
Base	Reversible
Top Deck	Solid Deck
Forklift	4 Way Entry
Pallet Jack	4 Way Entry
Hygienic	Yes
Rackable	Yes
Stackable	Yes
Reusable	Yes
Logo / Printing	Yes
Static Capacity	6000kg
Dynamic Capacity	1500kg
Racking Capacity	500kg
Usage Temperature	-40℃ to 70℃
Color	Yellow, Blue, Red, Green, Black, White, Custom
20FT Quantity	120pcs
40HC Quantity	310pcs

Product Feature of Blow Molding Plastic Pallet

• This blow molding plastic pallet is formed in a single continuous cycle, producing a hollow structure with uniform wall thickness and no joints, no weld lines, and no assembly seams. Unlike multi-part injection-molded pallets, the absence of bonded interfaces eliminates the most common structural failure points, maintaining consistent load distribution across the full 1200×1200mm deck surface through repeated handling cycles.

• Manufactured from virgin high-density polyethylene (HDPE), this blow molding plastic pallet delivers reliable impact resistance during forklift tine entry, corner contact, and drop events. HDPE’s semi-crystalline molecular structure resists sudden shock without fracturing. The material is non-porous, chemically inert against acids, alkalis, and most industrial solvents, and compliant with FDA and REACH standards for food-grade and pharmaceutical logistics.

• Integrated internal ribs distribute applied stress across the full cross-section of the pallet body, enabling a verified static load capacity of 6,000 kg and a dynamic load capacity of 1,500 kg under standard operating conditions. Racking capacity is rated at 500 kg on beam rack systems. These load figures are tested and documented under ISO 9001 quality management protocols. The rib geometry also maintains deck flatness under sustained floor stacking loads, reducing deformation risk in high-density storage configurations.

• The HDPE material grade used in this blow molding plastic pallet retains its mechanical properties across a verified operating range of -40°C to +70°C, and tolerates high-pressure hot water cleaning at up to 90°C without surface deformation or dimensional change. At low temperatures, HDPE maintains impact toughness without becoming brittle—a property that PP-based pallets do not consistently deliver below -20°C. This thermal stability supports use in outdoor yards, heated warehouses, temperature-variable distribution networks, and hygienic environments requiring regular steam or hot water sanitation.

• The two-sided structural design allows either face to function as the load-bearing deck, distributing surface wear and abrasion evenly across both sides during circulation. Blow-molded HDPE pallets of this type have a documented average service life of 6–8 years under regular warehouse operation, compared to 3–5 years for standard wooden pallets. The reversible design effectively extends usable life by reducing concentrated wear on a single surface.


• This blow molding plastic pallet is manufactured under ISO 9001 quality management systems and has been third-party tested and certified to the following standards: SGS, CE, FDA, REACH, RoHS, UN, GRS, and CTT EN-840. These certifications support use across food processing, pharmaceutical, chemical, and international export logistics where documentation of material safety and structural performance is required.

For more information on the blow molding process, please refer to our article: Plastic Pallet Manufacturing Process

Application of Blow Molding Plastic Pallet

• Heavy-duty warehouse handling (racking, stacking, floor storage): Selected when your operation needs stable load support across rack bays, floor staging, and multi-layer stacking—especially where forklifts and pallet jacks run continuous cycles and consistency matters.
• Warehouse racking + high-bay storage: Selected when your operation needs a stable, rackable platform for beam racking, repeated forklift entry, and predictable load transfer in standard warehouse systems
• Bulk bags and dense commodities: Common for fertilizer, feed, grains, resins, minerals, powders, and similar heavy, bagged loads that require strong deck support and safer stacking friction.
• Industrial manufacturing circulation: Fits high-frequency internal transfer between production, WIP, and finished goods areas—where pallets take regular hits, corner impacts, and continuous handling cycles.

Our Services

• 24/7 responsive support: A dedicated team of 100+ professionals ensures fast turnaround on quotations, technical questions, and project coordination—so procurement timelines stay predictable.

• 3-year warranty coverage: Every pallet is backed by a 3-year warranty. Any quality issue within the warranty period is handled through structured after-sales service to protect your operational continuity.

• OEM customization capability: Dimensions, colors, and branding can be customized. Logo options include silk-screen printing, heat transfer printing, and molded-in embossing to match your brand and identification needs.

• Quality proof with test videos: Product testing videos can be provided upon request, giving clear, visual evidence of performance and helping your team approve quality with confidence.
