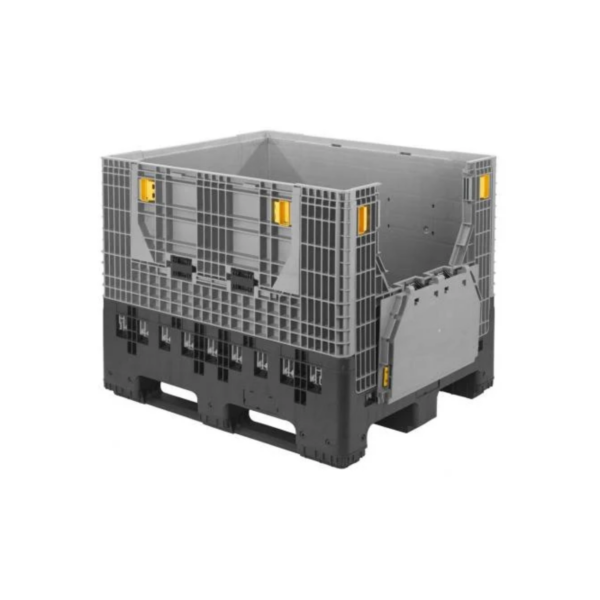

Solid Industry Folding Plastic Pallet Box

Specification of Our Solid Folding Plastic Pallet Box

Materials	High Density Polyethylene(HDPE), Polypropylene(PP)
Processes	Injection Molding + Assembled
External Dimensions	1200mm x 1000mm x 975mm, Custom
Internal Dimensions	1110mm x 910mm x 790mm, Custom
Folded Height	406mm
Volume Capacity	800L
Weight	75kg
Load Capacity	1T (Dynamic) / 4T (Static) / 1T (Rack)
Static Stack Layers	5 Layers
Dynamic Stack Layers	3 Layers
Forklift	4 Way Entry
Pallet Jack	4 Way Entry
Usage Temperature	-40℃ to 70℃
Access Door Position	Adjacent Sides (Long + Short) ×1 each
Base	3-Runner Base
Color	Yellow, Blue, Red, Green, Black, White, Custom
Logo / Printing	Yes
Accessory	Lid
Accessory	4 Wheels Added to Bottom, Drain Tap
Reusable	Yes
20FT Quantity	56pcs
40HC Quantity	150pcs

Watch how our Solid Folding Plastic Pallet Box folds, stacks, and handles in real warehouse conditions:

Built for Function: Structural Features of Our Solid Folding Plastic Pallet Box

This Solid Folding Plastic Pallet Box is designed to meet demanding industrial requirements with a structure that balances strength, usability, and flexibility. Below are the core functional details, organized for clarity:

Forklift Compatibility – 4-Way Entry

The base supports 4-way forklift and pallet jack access, allowing for smooth operation from all angles in busy warehouses and cross-docking areas.

Material Options – HDPE or PP

Manufactured using either HDPE for better cold resistance or PP for lightweight efficiency, making it suitable for a variety of logistics and transport environments.

Dual Drop-Down Doors – Side Access

Two drop-down doors are positioned on adjacent sides. These provide convenient mid-stack access—ideal for environments where full unloading isn’t practical.
Each door uses reinforced latch-and-hinge systems to ensure secure closure during stacking.

Optional Reinforcements & Accessories

The box can be equipped with:

• Lid cover to protect contents from dust or moisture
• Galvanized steel reinforcement tubes, which increase stacking strength and reduce wall flex under heavy load
• Customization is available based on usage needs.

Folding Mechanism & Durability Tips

To fold: open both drop doors by releasing the locks, then fold down the short panels, followed by the long ones.
The hinges are reinforced with flexible rubberized joints to minimize wear. We recommend periodic lubrication and avoiding over-tightening during folding for longer life cycles.

Solid-Sided with Vented Base

Though the side panels are solid for protection, the bottom features integrated vent holes to support airflow—especially important for bulk food and agricultural product transport, helping reduce spoilage.

Three Runners Base – Stackable & Racking Ready

The base is structured with 3 full-length runners, offering stable stacking and compatibility with many industrial racking systems.

Where It Fits Best: Real-World Applications by Industry

This Solid Folding Plastic Pallet Box is built for industries that demand reusable, space-saving, and structurally reliable packaging. Here’s where it excels:

Why Partner With Us – Expert Manufacturing for Folding Pallet Boxes

When it comes to Solid Folding Plastic Pallet Box, every detail matters—and we’ve built our process around making sure yours works perfectly in the field.

• Precision Fit, Every Time: Our factory molds are specifically built for 3-runner solid folding containers, ensuring consistent locking and folding with minimal error margin.
• Smart Reinforcement Options: Need custom steel reinforcement layouts? We adjust placement and thickness based on your stacking weight profile.
• Lid, Logo & Lock Variants Available: From lock type to branding position, our flexible production line supports real-world custom needs.
• Fast Production & Port Dispatch: We produce up to 150 units/day and ship globally from Qingdao and Shanghai, ensuring speed without compromising quality.
• Full Cycle Quality Checks: From raw HDPE testing to hinge fatigue assessment, each batch passes multi-point QC tailored to heavy duty, reusable use cases.

Choosing us means working with a Chinese manufacturer who understands the structural details that drive operational performance.
