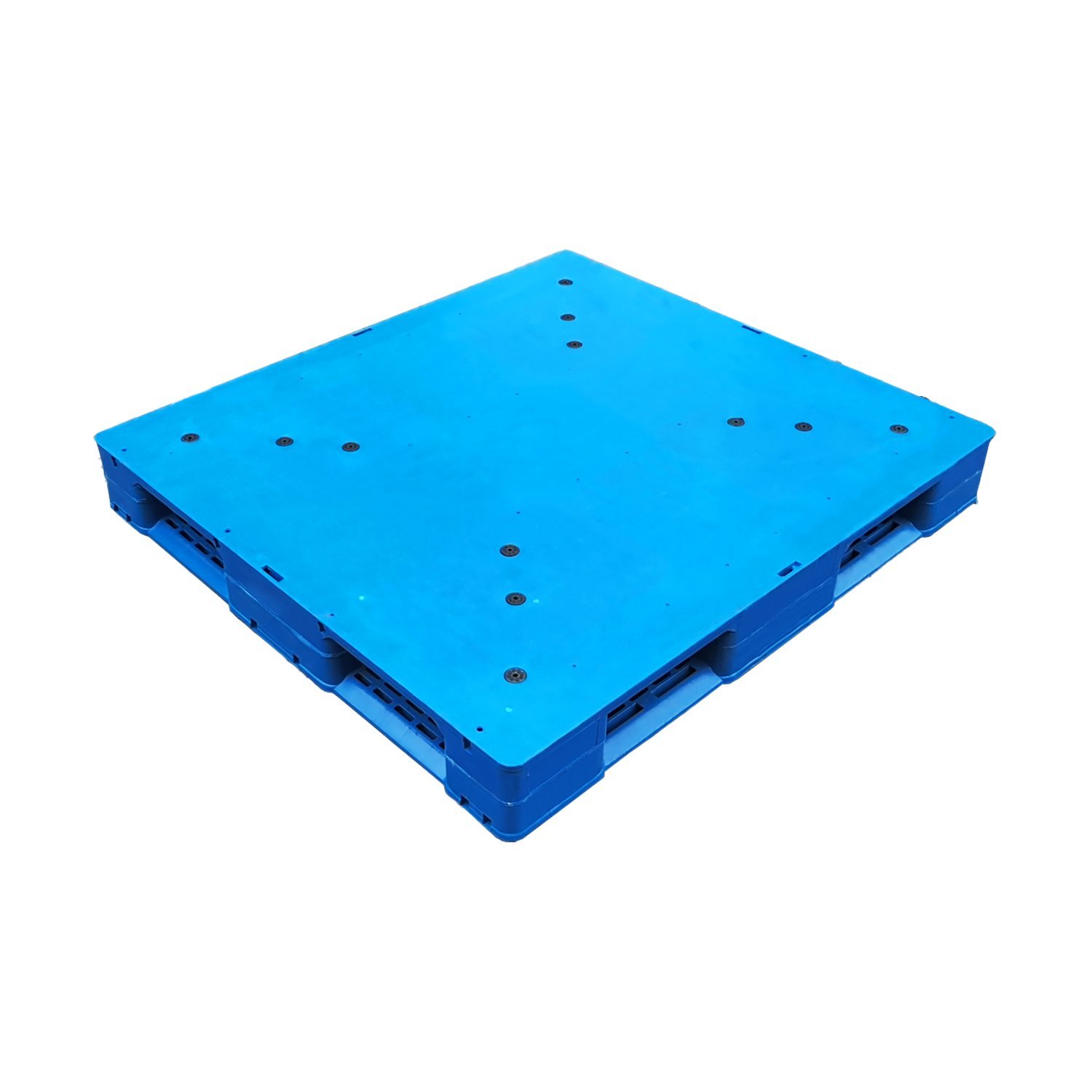

Stackable Plastic Pallet – Reversible – HDPE – Solid Deck | 1111PSB1

Product Specification

Model	1111PSB1
Materials	High Density Polyethylene(HDPE); Polypropylene(PP)
Dimensions (L×W×H mm)	1100mm × 1100mm × 150mm, Custom
Processes	Injection Molding+Welding
Weight	20kg
Reinforcement Bars	8 Bars (7kg)
Base	Double-side
Top Deck	Closed Deck
Forklift	4 Way Entry
Pallet Jack	4 Way Entry
Hygienic	Yes
Rackable	Yes
Stackable	Yes
Reusable	Yes
Logo / Printing	Yes
Static Capacity	6000kg(reinforced)
Dynamic Capacity	1500kg(reinforced)
Racking Capacity	1000kg(reinforced)
Usage Temperature	-40℃ to 70℃
Color	Yellow, Blue, Red, Green, Black, White, Custom
20FT Quantity	140pcs
40HC Quantity	362pcs

Reversible Stackable HDPE Plastic Pallets for Industrial & Heavy-Duty Use

High-Performance HDPE Material

Manufactured using high-density polyethylene (HDPE) via precision injection molding, this pallet offers superior molecular tightness, making it naturally resistant to moisture and chemical absorption. Its high impact strength prevents cracking under forklifts or drops, while maintaining structural stability from -40°C to +70°C, ideal for cold chains and harsh warehouses.

Reinforced Reversible Design

This reversible plastic pallet features identical flat decks on both sides, allowing dual-use and reducing surface wear over time. In automated systems, it eliminates orientation restrictions—preventing misfeeds or robotic picking errors, improving uptime and pallet turnover efficiency.

Heavy Duty Base for Load Security

The rackable structure includes closed-loop runners and welded corner joints, distributing weight across all contact points. This eliminates stress concentration zones, minimizing bending or sagging under high rack or static loads—essential for full-load stability in racking systems.

Anti-Slip Inserts Integrated

12 anti-slip rubber pads are precision-embedded at corners and center zones of the deck during molding. These inserts generate friction against smooth packaging bases (e.g., cartons, IBCs), effectively preventing shifts during forklift braking, vertical stacking, or conveyor acceleration.

Closed Deck for Hygiene-Critical Use

The seamless, non-vented top surface resists liquid ingress and dirt accumulation. Designed to be easy to clean and bacteria-repellent, it is ideal for sterile operations such as food packaging, pharmaceutical batching, and electronics handling where hygiene is non-negotiable.

Structural Welding for Long-Term Durability

Deck and runners are joined via high-frequency thermal welding, forming a uniform, sealed structure. Unlike bolt-assembled pallets, this method avoids loose connections and ensures resistance to cracking or detachment after long-term dynamic use.

Customizable Steel Reinforcement

Internal runners support insertion of 4 to 8 steel tubes, enhancing bending resistance under rack or forklift pressure. Pipes are locked into pre-molded channels, ensuring no shifting during transport, and materials like stainless steel are available for corrosive or food-grade environments.

4-Way Forklift Access

The pallet features entry slots on all four sides with angled lead-in ramps and reinforced tunnels, allowing forklifts to glide in smoothly without resistance. This ensures fast, seamless operations in tight spaces, accelerating racking, unloading, and high-frequency warehouse movement.

Mold & Branding Customization

Available as custom plastic pallets, clients can specify color, company logo (via silk screen or embossing), and embed RFID or barcodes during molding. This enhances brand visibility and real-time inventory tracking in automated warehouse systems.

Application of Reversible Stackable HDPE Plastic Pallets



Application Area	Typical Use Cases
Food Processing & Packaging	Beverage cartons, canned goods, bulk ingredient bags
Pharmaceutical Warehousing	Sterile packaging, medical drums, cleanroom material bins
Cold Chain Logistics	Frozen meat boxes, seafood crates, chilled dairy containers
Chemical Industry	HDPE drums, IBC tanks, chemical raw material sacks
Automotive & Machinery	Engine parts, metal components, assembly kits
Retail Distribution Centers	FMCG cartons, display-ready packaging, cross-docking units
Electronic Manufacturing	Anti-static bins, precision parts trays, sealed component boxes
Reusable Export Systems	Returnable transit packaging (RTP), plastic bins, pallet sleeves
