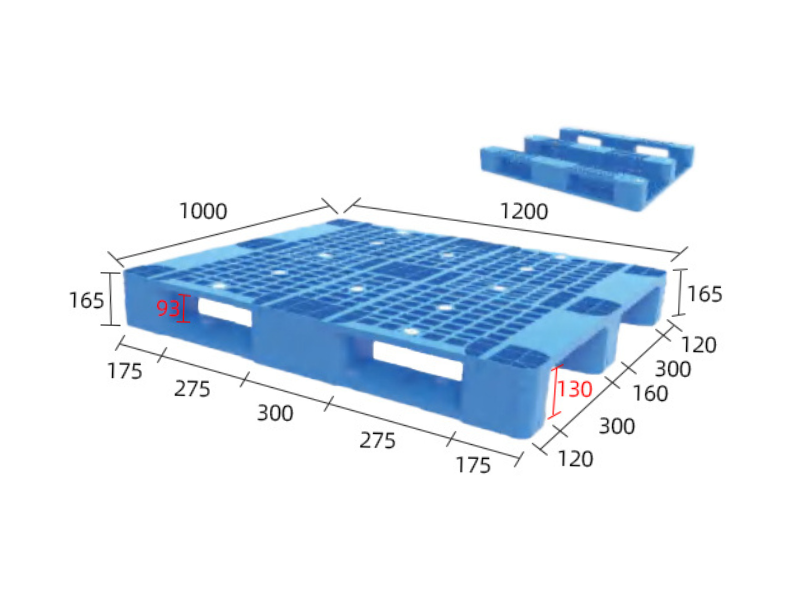

Our 1200 × 1000 × 165 mm HDPE Pallet is built through one-piece injection molding with ±2 mm accuracy, giving the structure the consistency automation systems rely on. The base layout and fork-entry geometry align with Plastic Pallets for Automation standards, ensuring smooth handling as a Rackable Pallet across AS/RS, shuttle lines, and pallets for storage in high-bay racking. With 4-way entry for tight aisles and a 1T rack load, the pallet supports demanding warehouse operations, with higher static load options available upon request.
| Model | Y1210WHZ |
| Materials | High Density Polyethylene(HDPE) |
| Dimensions (L×W×H mm) | 1200mm × 1000mm × 165mm, Custom |
| Processes | Injection Molding |
| Weight | 13.8kg |
| Reinforcement Bars | 10 Bars (12kg) |
| Base | 3 Runners |
| Top Deck | Vented Deck |
| Forklift | 4 Way Entry |
| Pallet Jack | 4 Way Entry |
| Hygienic | Yes |
| Rackable | Yes |
| Stackable | Yes |
| Reusable | Yes |
| Logo / Printing | Yes |
| Static Capacity | 6000kg(reinforced) |
| Dynamic Capacity | 1500kg(reinforced) |
| Racking Capacity | 1000kg(reinforced) |
| Usage Temperature | -30℃ to 40℃ |
| Color | Blue, Black, Grey, White，Custom |
| 40HC Quantity | 480pcs |
Reliable tracking from day one: Every automated warehouse plastic pallets can be embedded with HF or UHF RFID tags, ensuring consistent reads on shuttles, conveyors, and stacker cranes throughout high-cycle automation.
Barcodes that stay readable: Matte, UV-resistant zones are reserved for non-reflective labeling so scanners maintain accuracy even under harsh warehouse lighting or repeated sanitation.
Added stability where it matters: Anti-slip pads or strips can be integrated on the top deck, bottom deck, or runners to keep loads steady during acceleration, braking, and elevation in automated lines.
A safer edge for your goods: Optional Safety Edge reduces sliding of totes, cartons, and crates, providing extra protection during transport and conveyor transitions.
True 4-way handling: Fully compatible with forklifts and pallet jacks. Approach, load, and reposition the pallet from any direction—ideal for dense aisles and high-throughput docks.
Strength built for AS/RS: Reinforcement options with four or more steel tubes keep deflection low for high-bay racking and long-span storage, delivering stability your automation can rely on.
Color coding made simple: Custom color zones help segment SKUs, hygiene classes, or workflow areas without complicating daily operations.
Detection-friendly options: Metal-detectable materials are available for facilities with strict foreign-object control, supporting food, beverage, and pharmaceutical compliance.
Ready for any environment: Resin additives—anti-static, conductive, low-temperature, or UV-stabilized—can be tailored to match your storage, production, or cold-chain requirements.
Smoother entry onto conveyors: A dedicated bottom chamfer allows the pallet to glide onto roller or chain conveyors without impact or bounce, reducing stoppages and sensor faults.
Guided alignment at every infeed: Chamfered perimeter edges prevent corner interference and help the pallet self-align with conveyors, lifts, and shuttle systems for a cleaner, quieter flow.
Beyond the standard 1200 × 1000 × 150 mm size, we also offer formats tailored to different industries and regional systems. Our 1200 × 800 × 150 mm rackable pallet fits the needs of food and pharmaceutical operations, while the 1100 × 1100 × 150 mm version aligns with Japanese and broader Asian cold-chain requirements. If you’re exploring alternative footprints for your automation line or regional distribution network, reach out and we’ll prepare a quotation for the exact configuration you need.
Our automation-ready pallet is engineered for stability, repeatability, and smooth conveyor flow, and the 1200 × 1000 × 165 mm specification aligns well with European automated warehouse systems and high-throughput AS/RS operations across the following industries:
Extended Applications
Beyond automation, our reinforced runners, open-deck ventilation, and four-way handling give this pallet the durability, cleanliness, and long service life required for conventional warehouse operations as well. With these capabilities, the plastic pallets for automation performs reliably across industries such as:
| Weekly Output Capacity | 100,000 pcs/week (for this model) |
|---|---|
| Sample Availability | Free (Freight at Buyer’s Expense) |
| Leadtime | 15 days after 50% deposit |
| Shipping Ports | Qingdao, Shanghai, and other options |
| Export Capability | Global delivery supported |
| Quality Standard | ISO 9001, SGS, ROHS, FDA, CE, REACH,UN, CTT, EN-840, GRS |
| MOQ | 200pcs |
