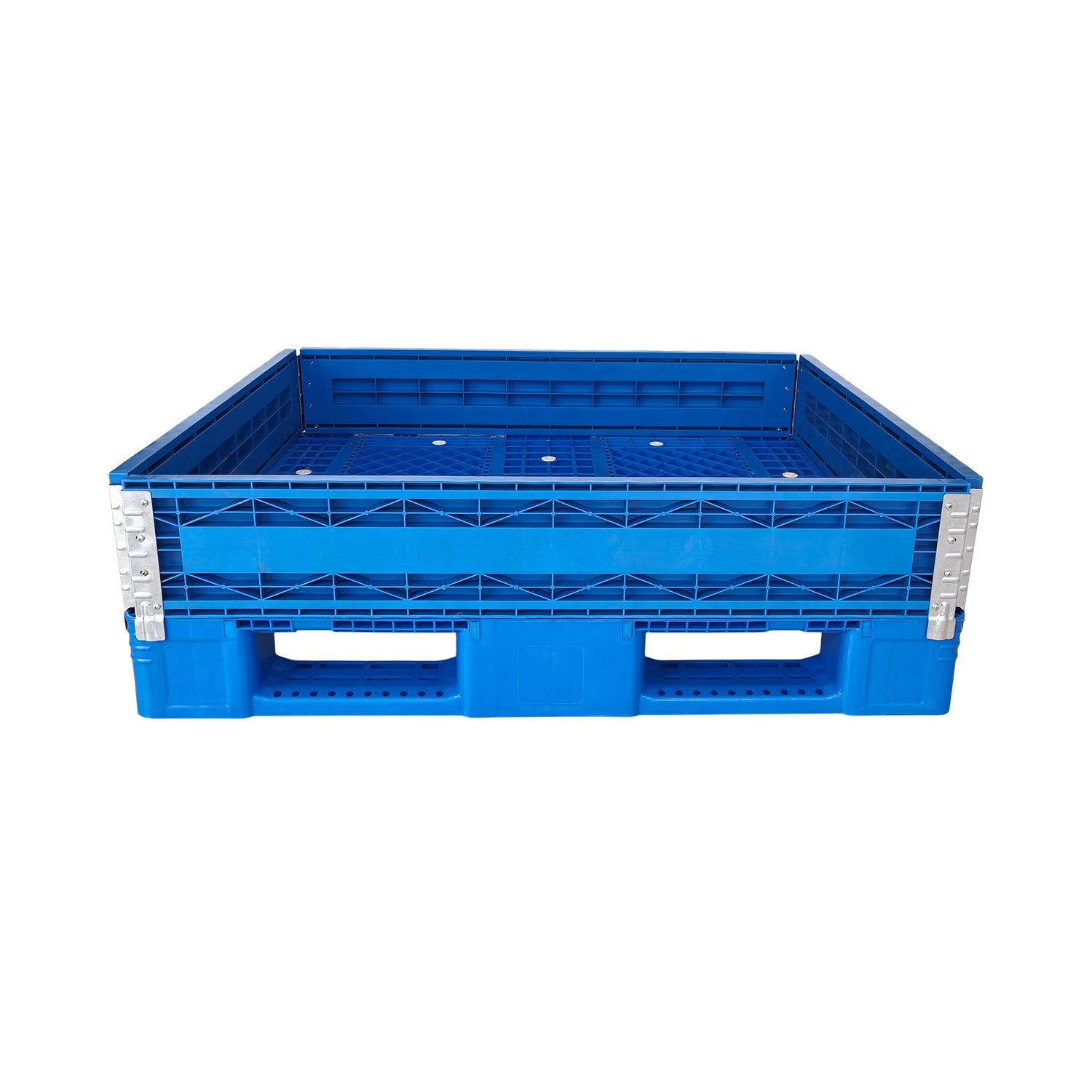

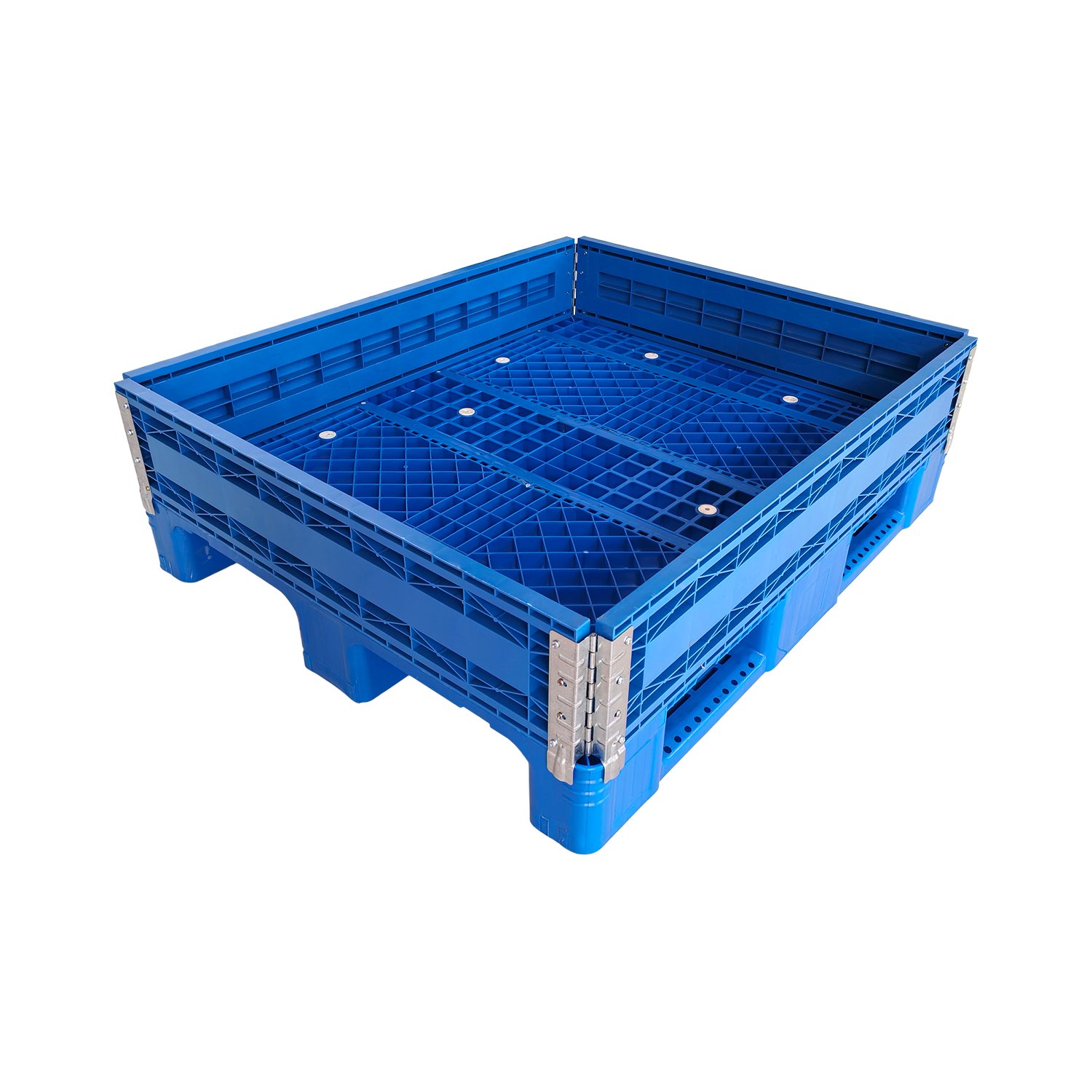

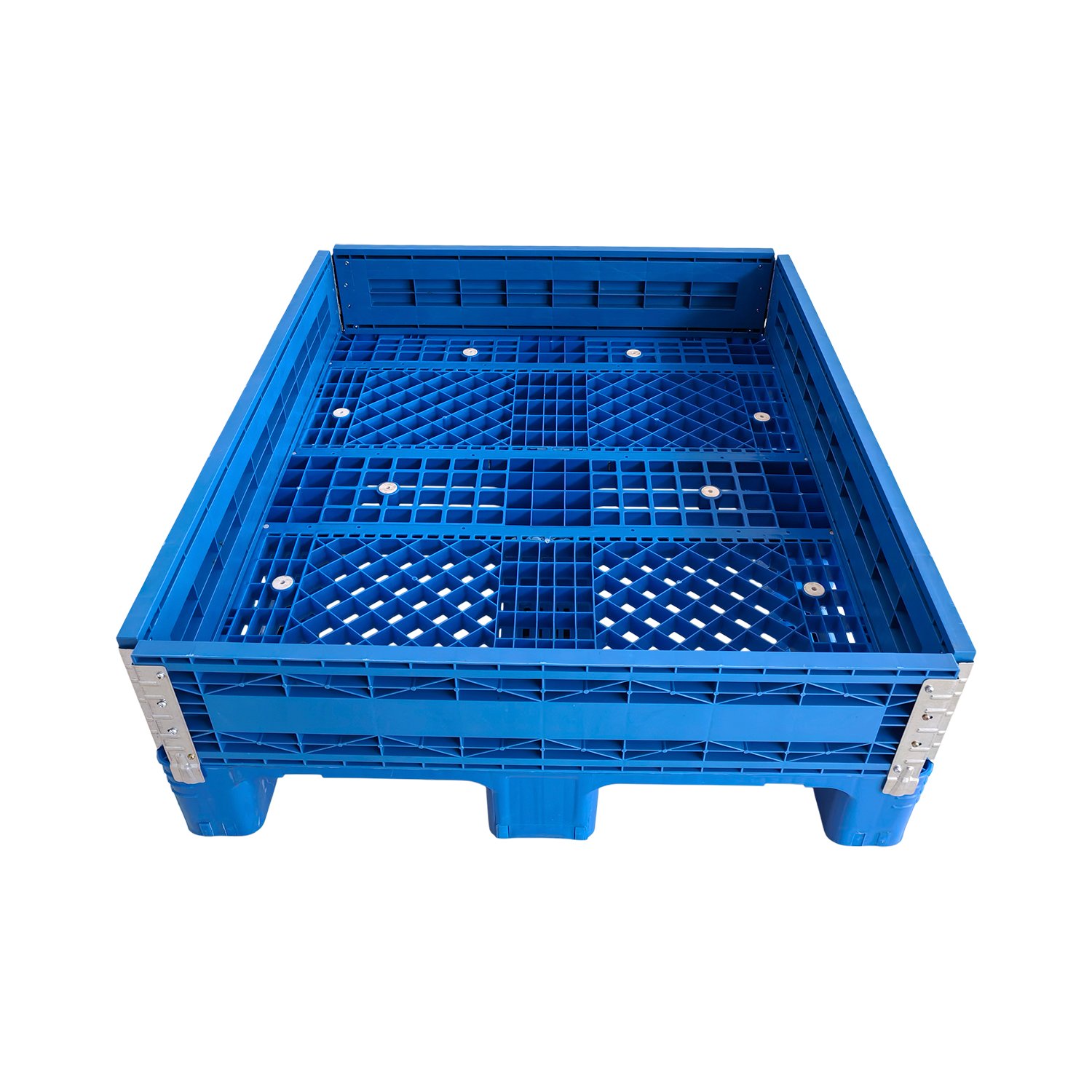

Plastic Pallet Collar with 4 Hinge

We design modular single-fold plastic pallet collar for quick setup and removal, fitting 9-foot and 3-runner plastic pallets with a fixed 200 mm height. Perfect for flatbed, container, and wing-body trucks, cut handling time and boost load density. Height-adjustable and more versatile than traditional plastic containers, ideal for telecom, electronics, and auto parts. As apallet collar manufacturerswith bulk pricing and sustainable large stock, we deliver fast, reliable supply. Our collar pallet protect your goods and optimize every shipment!

When you choose our 4-Hinge Single-Fold Plastic Pallet Collar, you get a solution that fits the most common pallets on the market — including 1200 × 1000 mm 9-foot and 3-runner pallets in both plastic and wood. As trusted pallet collar manufacturers, we can also customize special sizes to match your exact workflow.

Our plastic pallet collar is built from high-impact HDPE or PP panels that won’t bend or warp under load. Galvanized steel pallet collar hinges, brackets, and reinforced corners lock it firmly to the pallet base, so it stays stable no matter how many times you move it.

You can stack it up to 11 layers high, maximizing storage without sacrificing stability. Tested for 30,000 folding cycles, it’s made for long-term use in high-turnover operations.

The modular design means you replace just one damaged panel instead of the entire collar, cutting maintenance costs. We offer 100% virgin HDPE / PP for premium strength or recycled HDPE / PP for cost-efficient, sustainable performance.

You’ll notice the smooth inner surfaces protect delicate goods from scratches, and the precision-molded panel grid keeps your pallet collars stable even under heavy stacking. With the single-fold design, setup takes seconds, and storage stays compact when it’s not in use.

Product Specification

Model	External Dimensions (mm)	Internal Dimensions (mm)	Static Load	Dynamic Load	Stacking Height	Folding Cycles	Weight
1212H1	1200 × 1200 × 200	11501150200	1800 kg	600 kg	11 layers	30,000 cycles	7.0 kg
1210H1	1200 × 1000 × 200	1150950200	1800 kg	600 kg	11 layers	30,000 cycles	6.6 kg
1208H1	1200 × 800 × 200	1150750200	1800 kg	600 kg	11 layers	30,000 cycles	6.1 kg
1010H1	1000 × 1000 × 200	950950200	1800 kg	600 kg	11 layers	30,000 cycles	6.1 kg
1008H1	1000 × 800 × 200	950750200	1800 kg	600 kg	11 layers	30,000 cycles	5.7 kg
0808H1	800 × 800 × 200	750750200	1800 kg	600 kg	11 layers	30,000 cycles	5.2 kg
0806H1	800 × 600 × 200	750550200	1800 kg	600 kg	11 layers	30,000 cycles	4.7 kg

Additional information

Materials	High Density Polyethylene(HDPE), Polypropylene(PP)
Processes	Injection Molding + Assembly
Logo / Printing	Yes
Rackable	Yes
Stackable	Yes
Reusable	Yes
Usage Temperature	-30℃ to 40℃
Leadtime	15 to 20 days
Quality Standard	ISO 9001, SGS, ROHS, FDA, CE, REACH,UN, CTT, EN-840
Color	Black, Blue, Custom
MOQ	300pcs

Payment：
T/T (Telegraphic Transfer): Preferred method for large orders; typically requires a 30% deposit with the balance paid before shipment.
L/C (Letter of Credit): Available for larger orders upon agreement.
Western Union / PayPal: Available for smaller orders or urgent transactions.
Production Lead Time:
Standard Orders: 7-15 business days, depending on order volume and customization requirements.
Custom Orders: 20-30 business days, subject to mold development and design finalization.
Delivery:
Sea Freight: Cost-effective for large orders, with delivery times ranging from 10 to 30 days, depending on the destination port.
