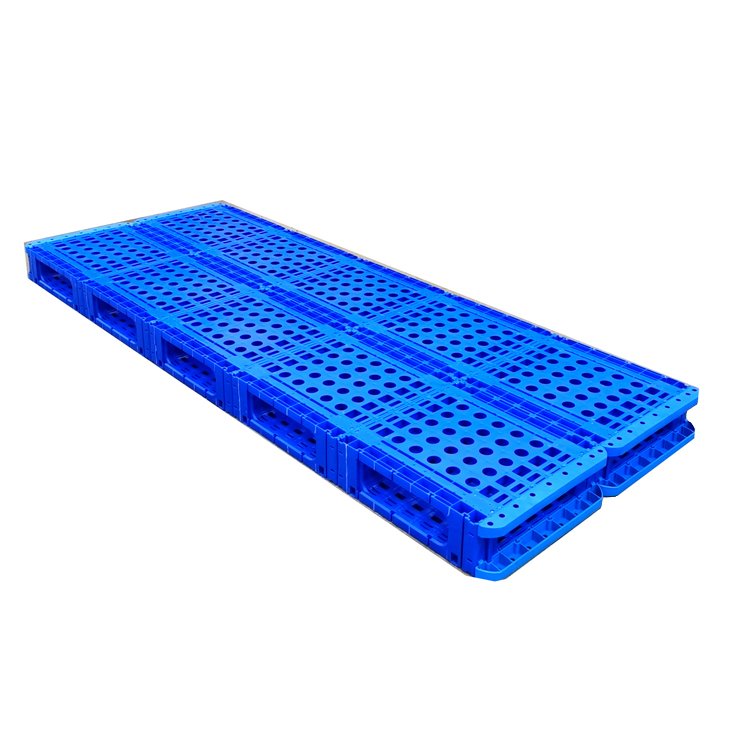

2600mm × 1000mm Splicing Pallet for Oversized Material Handling

Why Choose Our 2600mm × 1000mm Splicing Pallet for Oversized Material Storage

Built to Hold Extra-Long Loads Without Bending

Structure highlights:
This 2600mm extended-length splicing pallet features a double-face deck reinforced with 14 embedded steel bars—4 longitudinal and 10 crosswise. Its modular body resists mid-span deflection, even under long-term static load.

What it solves:
Standard pallets can’t support steel rods, flat bars, or profiles over 2.5 meters without overhang or sag. This pallet ensures full-length contact, eliminates bending risks, and avoids unsafe multi-pallet setups.

Vented Surface + Double Face for Cleaner, Safer Material Storage

Structure highlights:
The top deck uses a ventilated circular grid to improve airflow while keeping material elevated above ground moisture. The double-face base supports low-stack loads with balanced pressure.

What it solves:
Metal stock stored on bare floors is vulnerable to condensation, corrosion, and contamination. This pallet offers dry, clean storage conditions and prevents packaging abrasion from sharp deck edges.

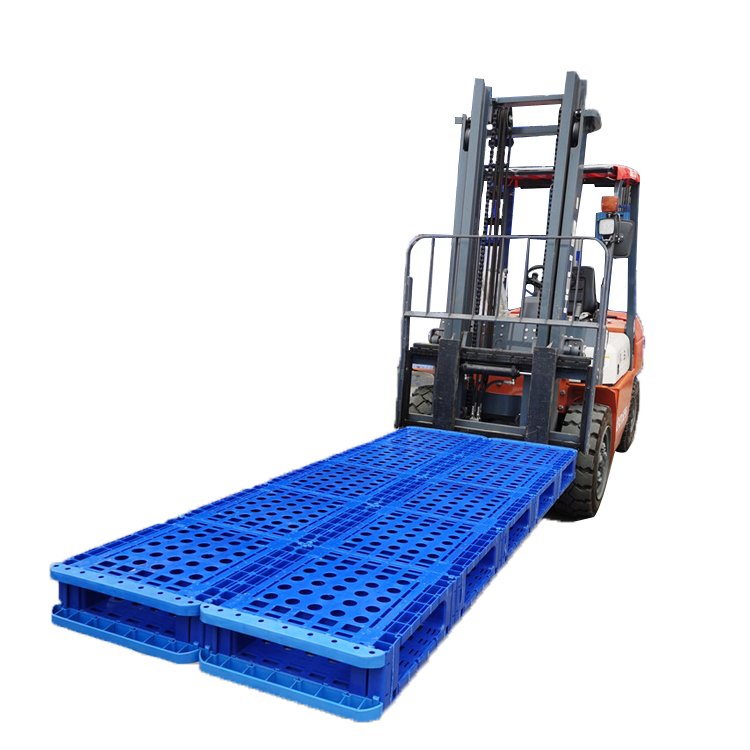

4-Way Entry and Modular Edge Design for Operational Flexibility

Structure highlights:
Designed with 4-way forklift and pallet jack entry, plus removable edge barriers on all sides. End modules can be detached and extended if your material exceeds 2600mm.

What it solves:
No need to reconfigure pallets or force tight turns during handling. You get faster, safer movement in tight aisles, and one pallet adapts to multiple product lengths—reducing pallet SKUs and handling time.

Engineered for Heavy Loads with Minimal Deflection

Structure highlights:
Built to carry 4 tons static and 1.5 tons dynamic, this pallet holds its form across long spans. Reinforced splicing points prevent torsional twist under full load.

What it solves:
Whether resting on a rack or concrete floor, the pallet won’t sag or shift under weight. It’s your alternative to steel racks or custom wood bases—without the long lead times or warping risk.

Customizable options of Splicing Pallet for Oversized Material Handling

Reinforcement Layout

Customize the number and placement of steel bars to support highly concentrated loads or uneven weight distribution from steel bundles.

Removable Edge Guards

Add detachable side or end barriers to prevent round bars or sheet stacks from sliding during stacking or forklift movement.

Low-Temperature Material Formula

Use impact-resistant HDPE for extreme cold storage or outdoor yards down to -40°C.

Fire Retardant Resin Option

Offer fire-retardant material blends (UL94 V-2 or similar) for indoor use near welding or thermal processing areas.

Anti-Slip Surface Treatment

Add rubber pads or friction-enhanced top deck zones to stabilize oily or wrapped metal parts during handling.

Central Reinforced Support Blocks

Reinforce the center zones of the deck to withstand point loading from stacked steel coils or rod bundles.

Custom Color Coding

Provide pallet colors aligned with material type or production line coding for faster batch identification and error-proofing.

Embedded RFID or Laser Code

Enable pallet-level tracking for warehouse automation and coil traceability through embedded tags or permanent ID marking.

Pallet Length Extension Modules

Offer interchangeable end-extension kits to convert 2600mm pallets into longer units (e.g., 3000mm) for extra-long profiles.

Forklift Channel Reinforcement

Add closed-slot sleeves or fork guides for high-speed or uneven-floor forklift operations to avoid impact damage.
