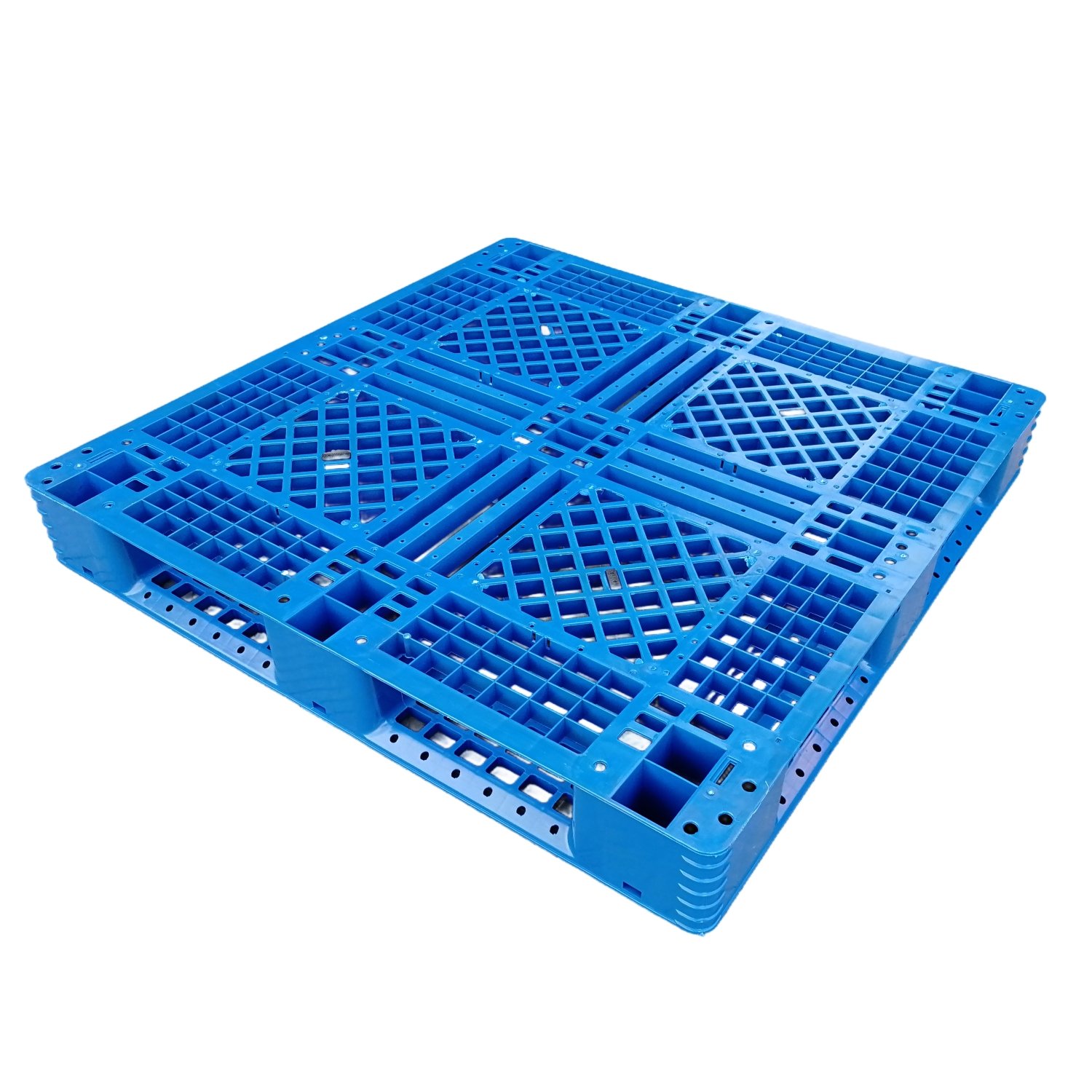

Full Perimeter Plastic Pallet- 6 Runners – Vented Deck | Y1313WTA

Product Specification

Model	Y1313WTA
Materials	High Density Polyethylene(HDPE); Polypropylene(PP)
Dimensions (L×W×H mm)	1300mm × 1300mm × 150mm, Custom
Processes	Injection Molding
Weight	19kg
Reinforcement Bars	8 Bars (7kg)
Base	6 Runners
Top Deck	Vented Deck
Forklift	4 Way Entry
Pallet Jack	4 Way Entry
Hygienic	No
Rackable	Yes
Stackable	Yes
Reusable	Yes
Logo / Printing	Yes
Static Capacity	6000kg(reinforced)
Dynamic Capacity	1500kg(reinforced)
Racking Capacity	1000kg(reinforced)
Usage Temperature	-40℃ to 70℃
Color	Yellow, Blue, Red, Green, Black, White, Custom
20FT Quantity	108pcs
40HC Quantity	265pcs

Product Advantage

HDPE/PP Material Construction

Injection-molded from virgin High-Density Polyethylene (HDPE) and Polypropylene (PP) reinforced with 8 steel bars (7kg), this full perimeter plastic pallet maintains structural integrity across -40°C to 70°C — suitable for cold chain storage, outdoor yards, and high-temperature industrial environments without material deformation.

6-Runner Full Perimeter Base

The 6-runner full perimeter base distributes load evenly across the entire pallet footprint, enabling a racking capacity of 1,000kg (reinforced) and compatibility with standard selective racking systems. Dimensions: 1300 × 1300 × 150mm, weight: 19kg.

Load Capacity: 6,000kg Static / 1,500kg Dynamic

Reinforced static capacity of 6,000kg and dynamic capacity of 1,500kg make this heavy duty full perimeter plastic pallet suitable for dense warehouse stacking, heavy manufacturing logistics, and multi-tier racking applications.

Vented Deck for Airflow-Sensitive Goods

The vented top deck maintains continuous airflow around stored products — critical for perishable food, fresh produce, and pharmaceutical items requiring temperature and humidity control during storage and transit.

4-Way Forklift & Pallet Jack Entry

Full 4-way entry on both forklift and pallet jack allows approach from any direction, reducing repositioning time. Container loading efficiency: 108 pcs per 20FT, 265 pcs per 40HC.

100% Reusable & Recyclable

Unlike timber alternatives, this plastic full perimeter pallet carries no pest contamination risk, meets international phytosanitary regulations, and is fully recyclable at end of service life — reducing long-term procurement cost per cycle.

AGV & Automated System Compatibility

Injection molding ensures dimensional consistency across every unit — a critical requirement for pre-programmed AGV systems that cannot accommodate the variable tolerances of timber pallets. Key parameters for system integration planning:

• Overall footprint: 1300 × 1300mm (±2mm tolerance)
• Fork entry clearance height: 86mm — compatible with standard AGV forklift forks and pallet lifter AGVs
• Runner spacing: 220–300mm open gaps between 6 runners, accommodating both fixed and adjustable AGV fork widths
• Total height: 150mm (deck: 32mm / clearance: 86mm / base: 32mm)
• Weight: 19kg (±5%), consistent unit-to-unit for load-cell calibrated AGV systems
• Top deck flatness: rigid HDPE injection-molded surface with no warp or board protrusion — eliminates misfeed errors in conveyor and robotic arm transfer points

Suitable for guided-path AGVs, LIDAR/vision-based AMRs, and automated conveyor line integration. For facilities with non-standard fork geometry or custom AGV specifications, dimensional customization is available.
