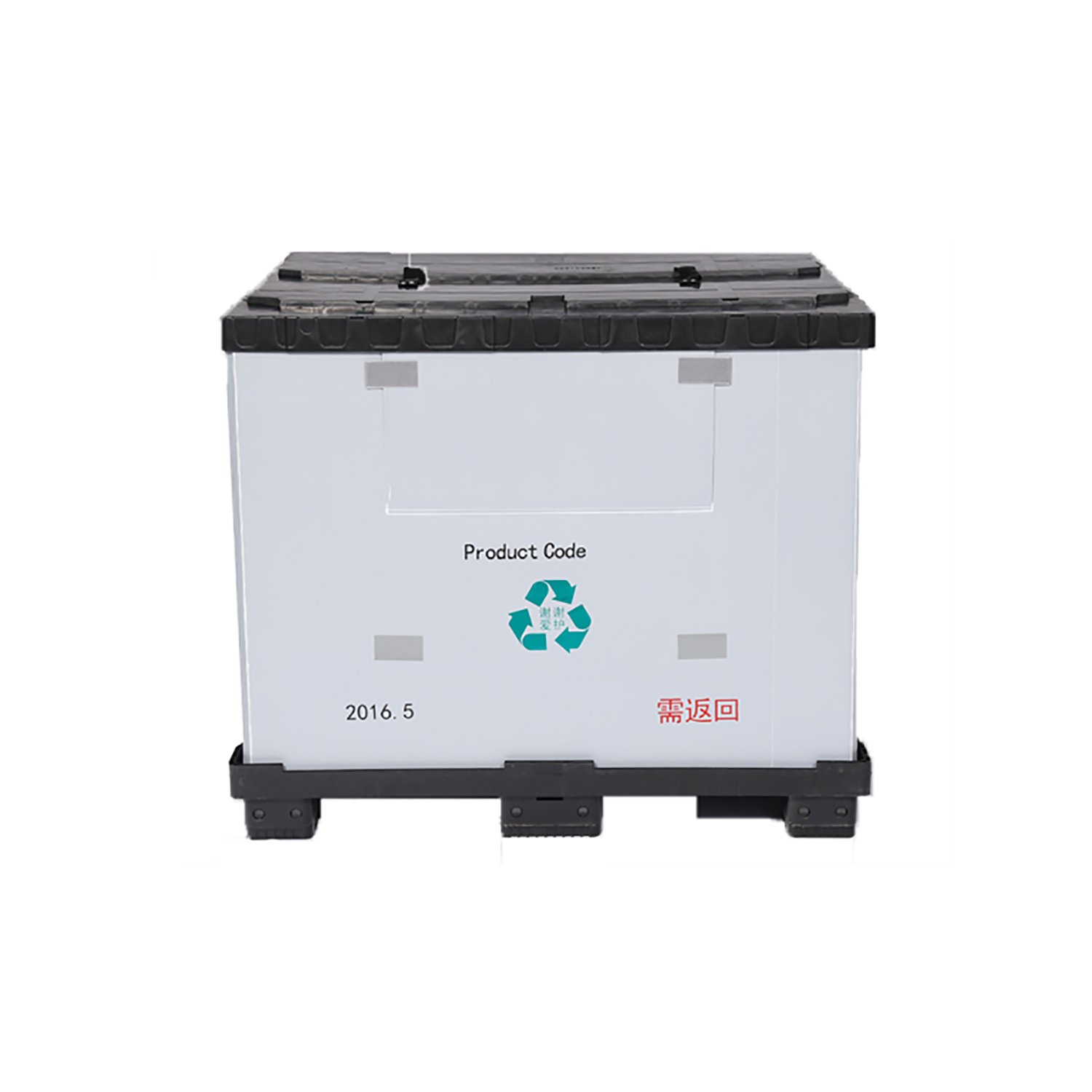

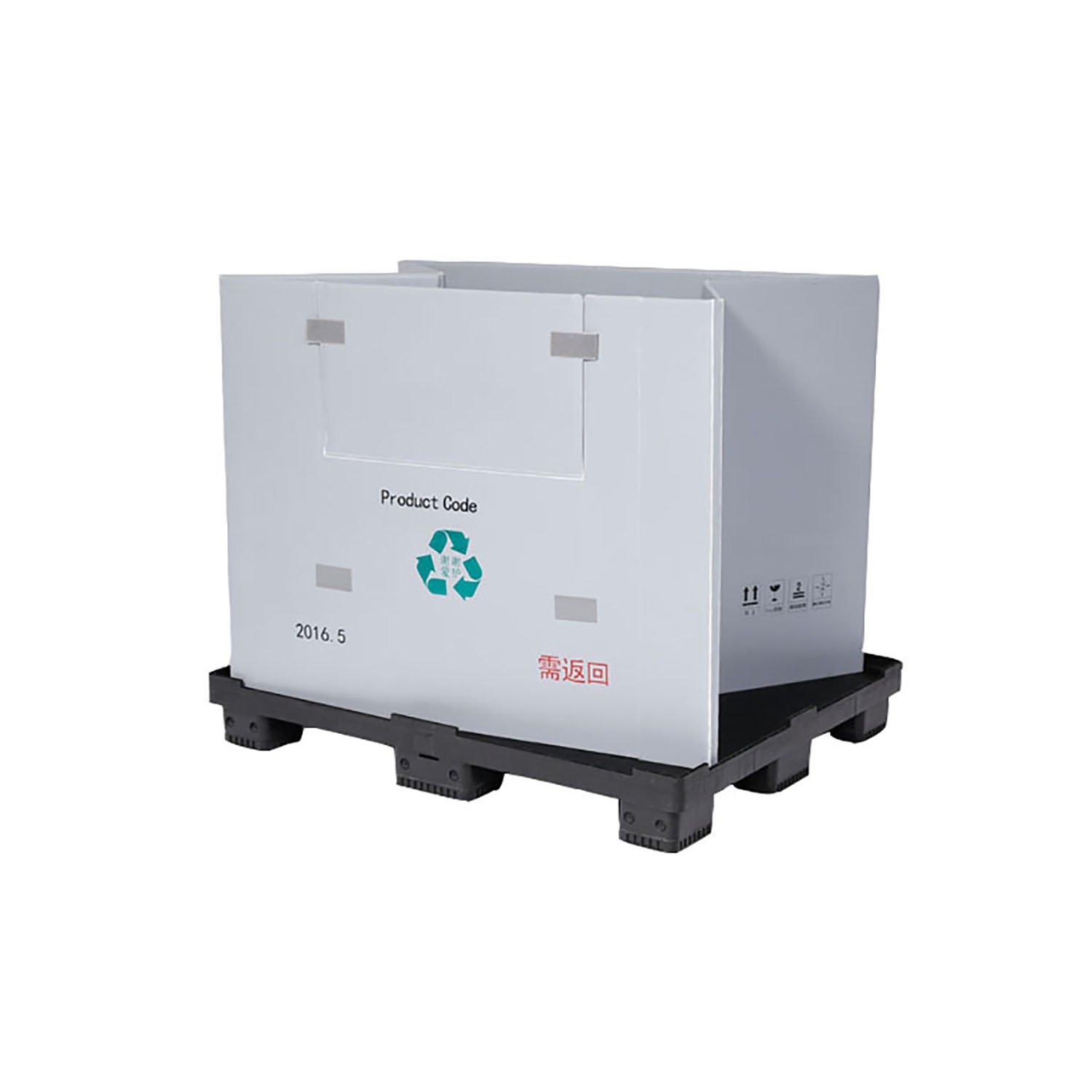

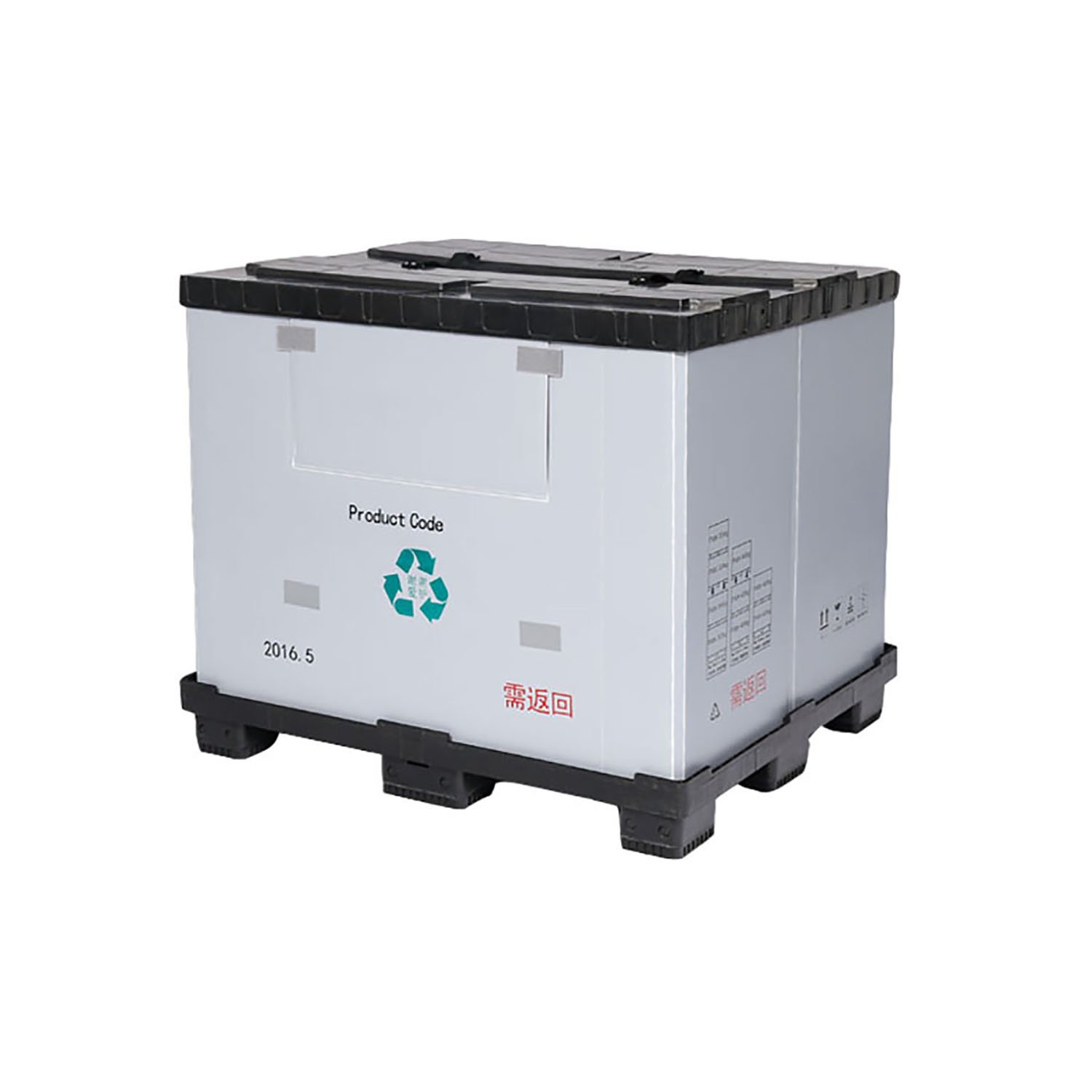

We supply the 1200×1000mm foldable sleeve pack with fully sealed HDPE lid and pallet, made only from food-grade virgin HDPE+PP. The smooth PP sleeve prevents dust buildup and can include a drop door if required. Designed by our engineers for auto parts, electronics, appliances, machinery and food, this model ensures seamless logistics and storage. 100% recyclable, factory direct supply, with bulk order discounts available.
Double thermoformed lid with four studs aligns with sleeve corners for stable stacking.
The base uses a double thermoformed nine-foot design, supporting four-way forklift entry.
Sleeve made of 3200GSM PP corrugated board, stronger and ideal for high-frequency use.
Split return ratio up to 1:8, helping you greatly cut backhaul and overall transport cost.
Empty units nest together, full set return ratio up to 1:5, saving your valuable space.

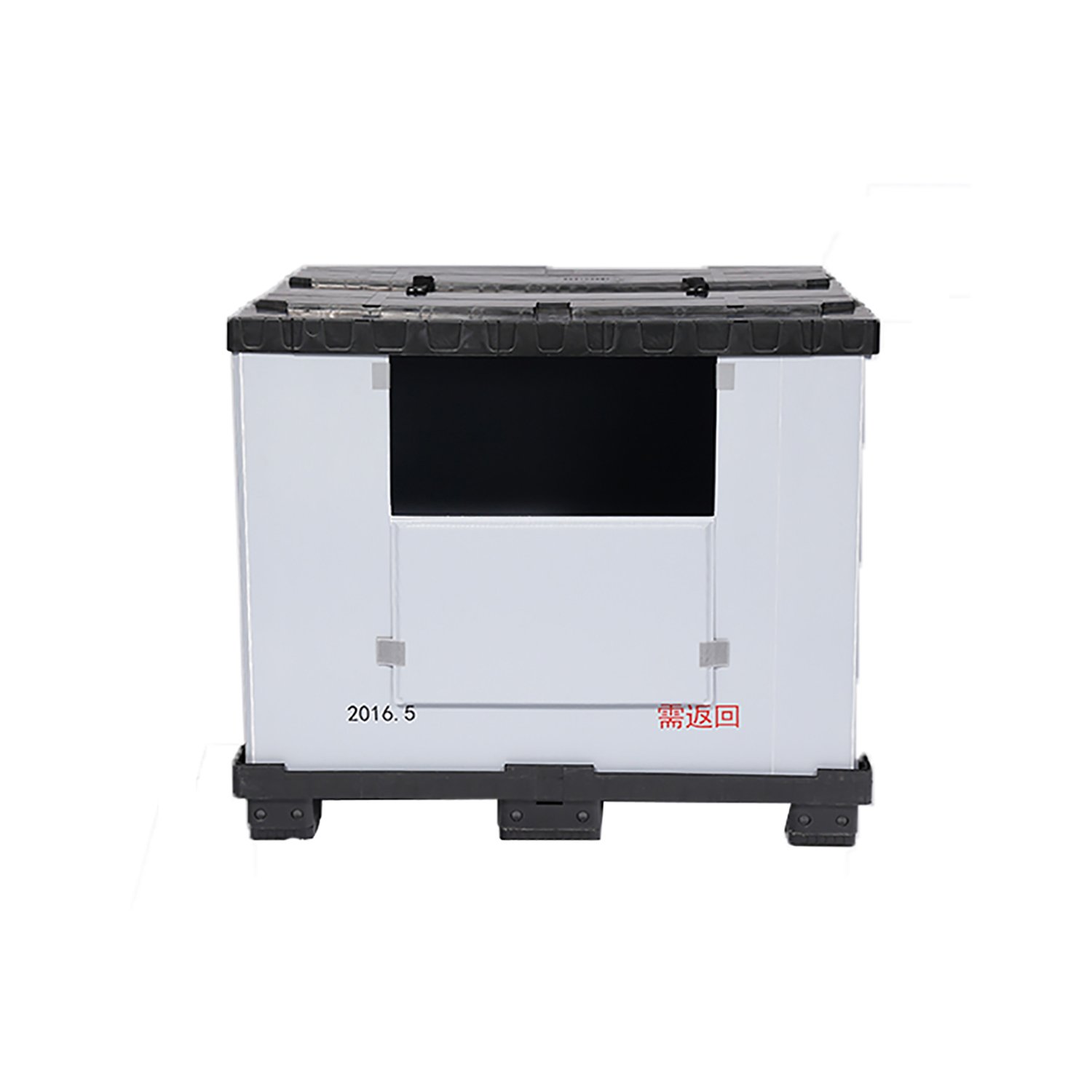

Optional same-side dual drop doors allow workers to access goods faster and with ease.
Stable stacking capacity: 1+2 static layers, 1+1 dynamic layers, secure and reliable.
Option | Description |
---|---|
Sleeve height | Adjustable upon request |
Logo printing | Brand customization available |
RFID tags | Smart tracking option |
Colors | Black, gray, blue, or custom |
Locks | To secure the sleeve firmly |
Steel bars / Runners | Add 2–4 steel bars or base runners for load capacity |
Inserts | Honeycomb, corrugated, EVA, or fabric |
Sleeve types | Multicolor honeycomb, corrugated, cross-style |
Additives | Anti-static or conductive available |

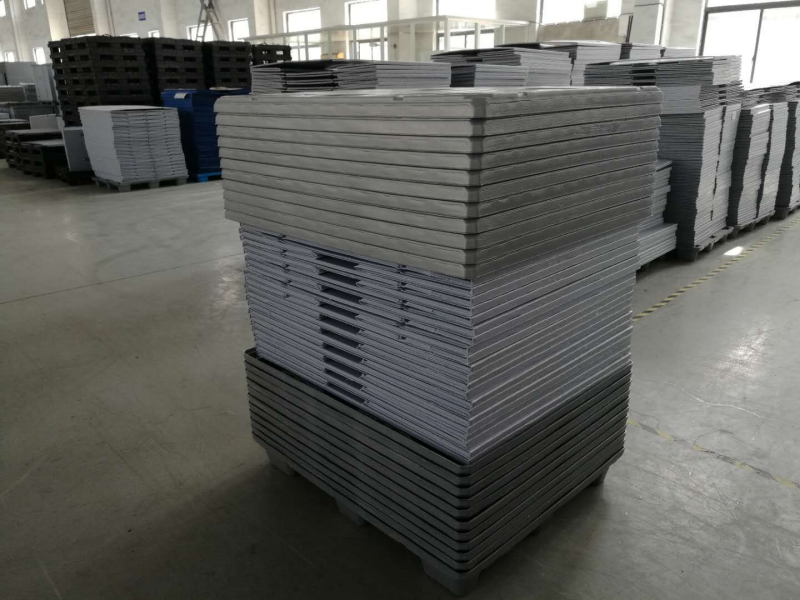

We normally use the split method (lids stacked, sleeves folded, bases stacked), loading 400 units in a 40HQ for maximum efficiency.
External Dimensions | 1200 × 1000 mm, Custom |
---|---|
Internal Dimensions | 1135 × 935 mm, Custom |
Lid | Stacking Studs Twin Sheet |
Base | Twin Sheet 9 Legs |
Sleeve | PP Material |
Lid Weight | 8 kg |
Pallet Weight | 11 kg |
Locking Clips | Available |
Reinforcement Bars | 2-4 Bars |
MOQ | 10 Pcs |
40HC Quantity | 400 Sets |
