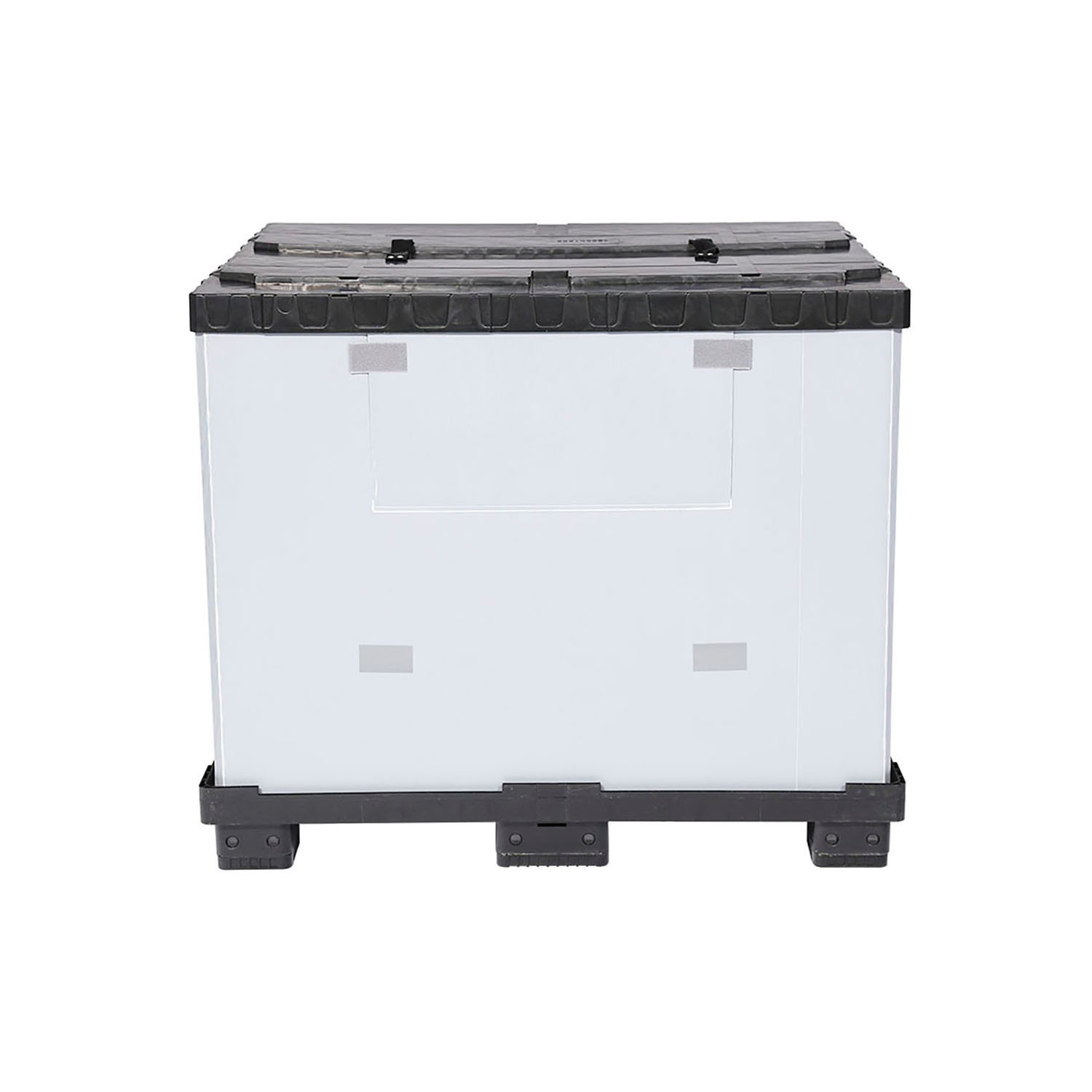

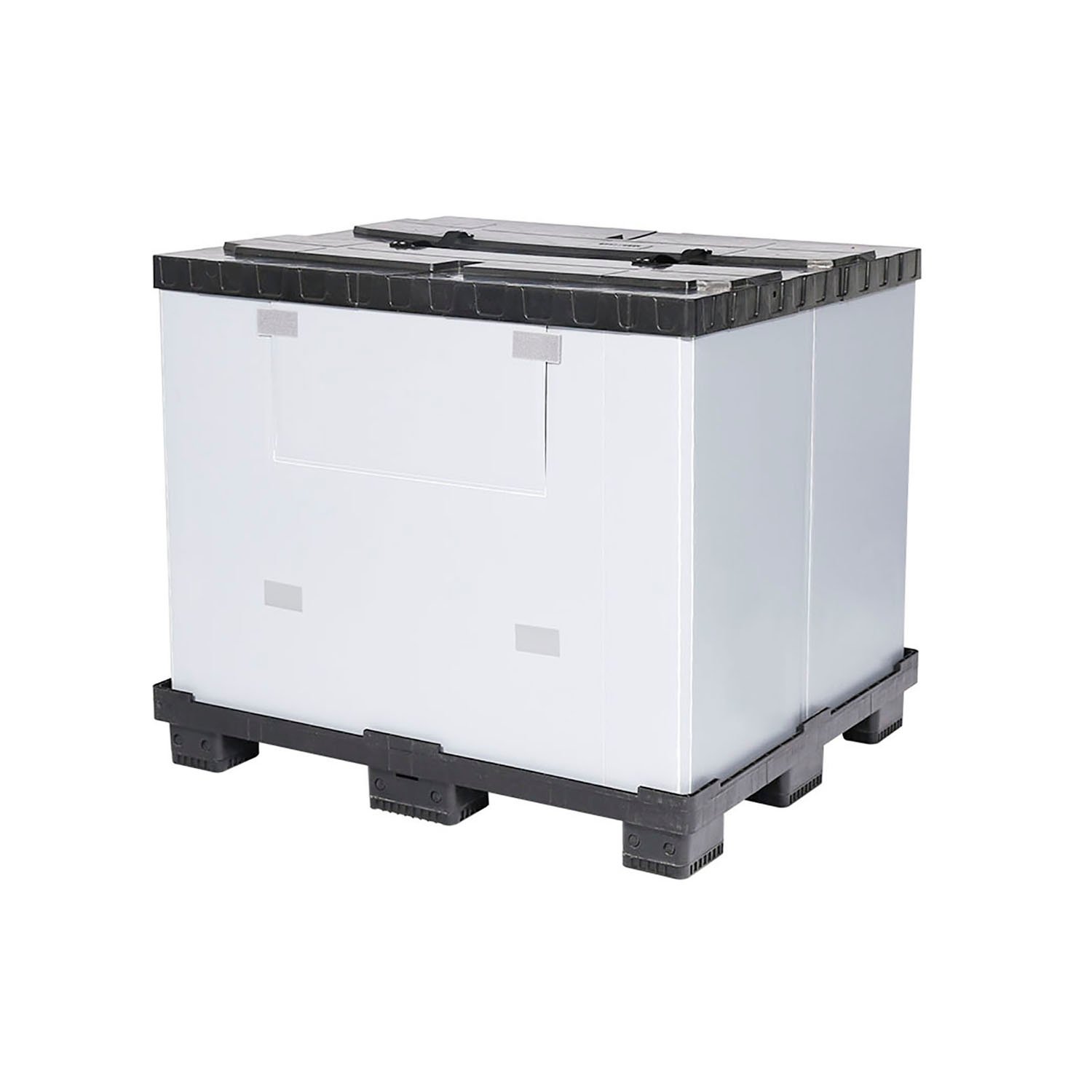

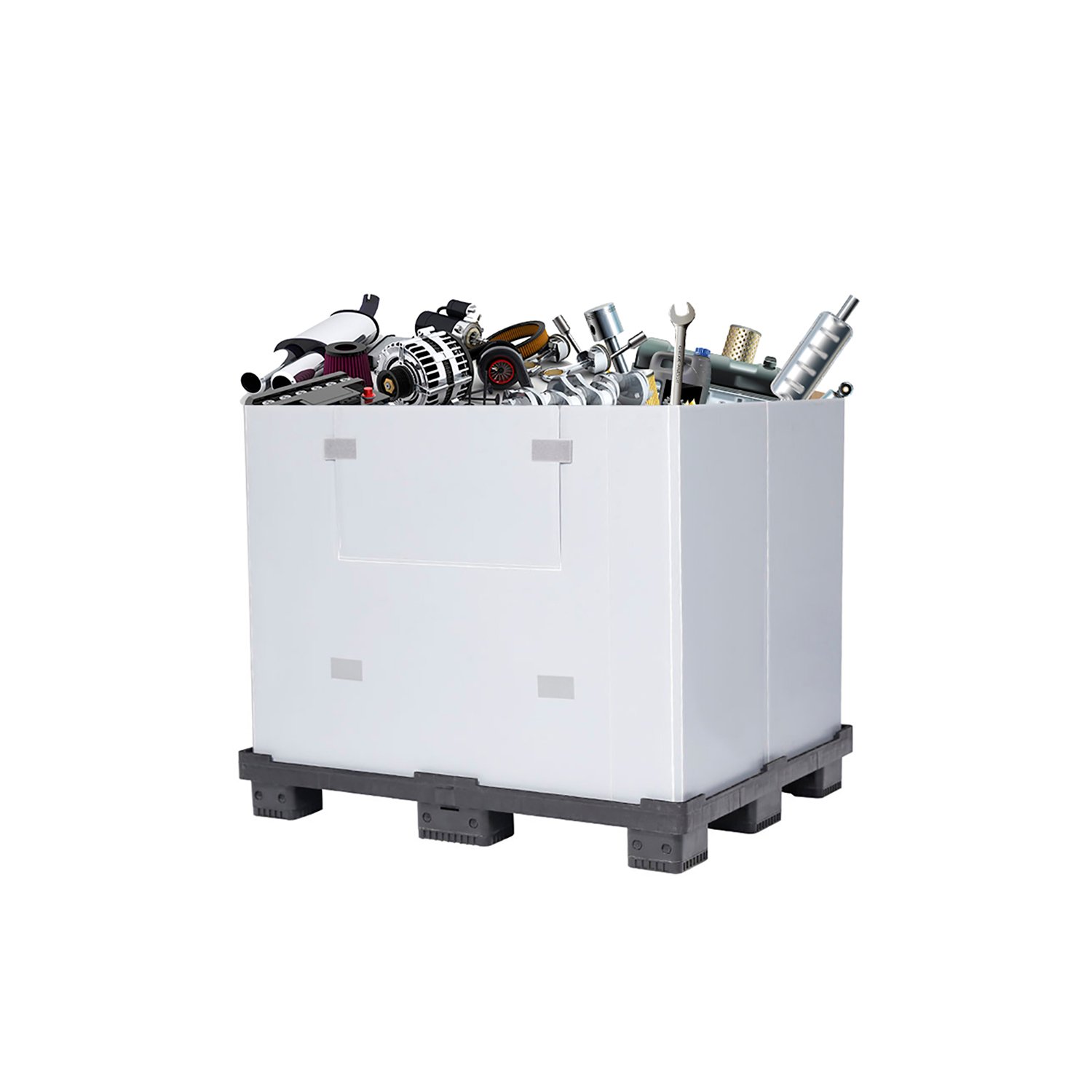

1100×1100 Sleeve Packs Container Box

Reliable Pallet Sleeve Box for Photovoltaic and Polysilicon Logistics

If you are in the photovoltaic or polysilicon industry, this 1100 × 1100 mm Sleeve Packs Container Box is made for your silicon materials and rods. You get safe, stable transport and smooth circulation in your production and logistics system—no compromises.

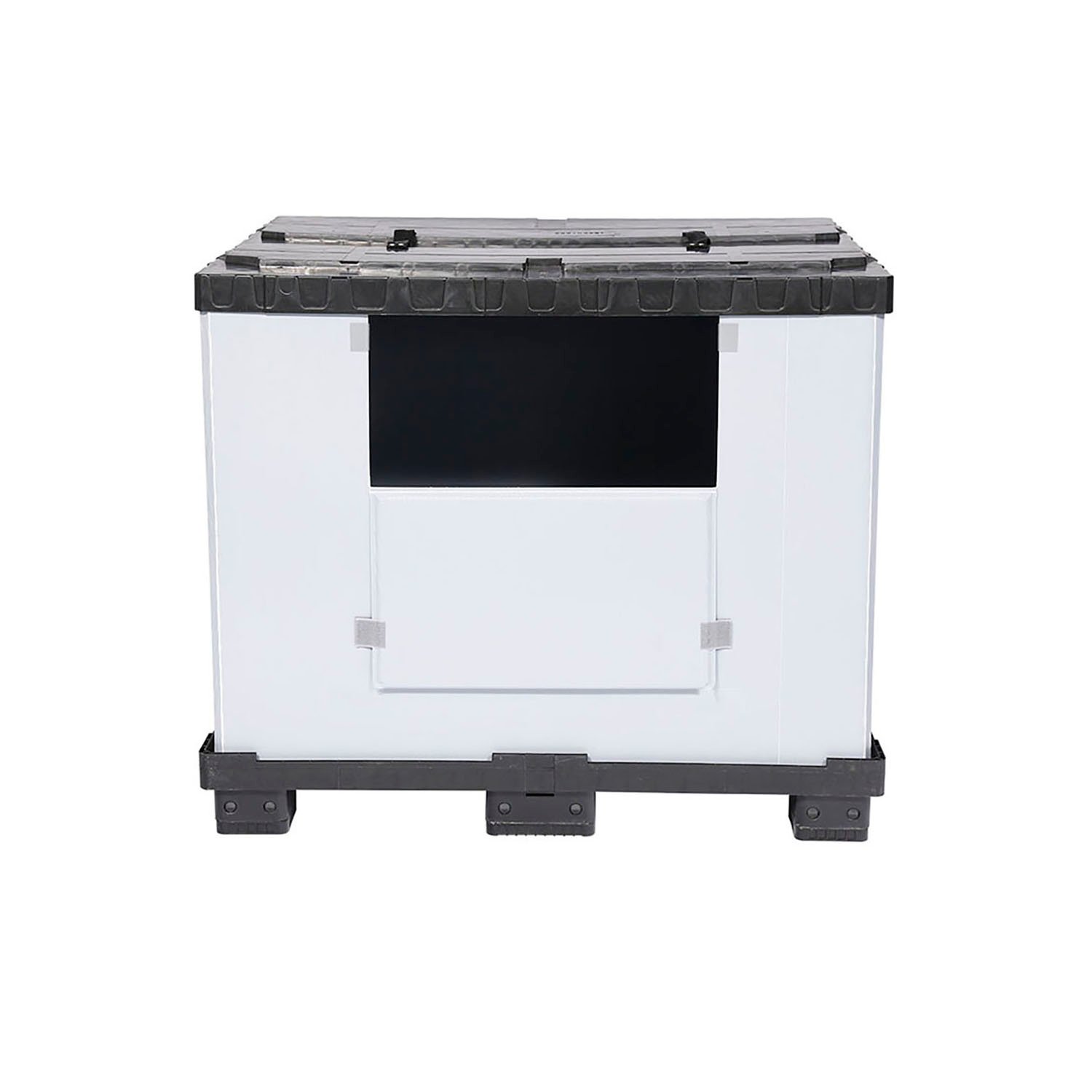

With a double-layer thermoformed pallet base and a lid reinforced by 2 or 4 steel tubes, you unlock powerful load capacity. The corner-supported stacking keeps every stack steady, while the PP honeycomb plastic sleeve box folds fast, sets up quickly, and even lets you open small doors for easier handling.

A return ratio of 1:8 for sleeves and 1:5 for full sets cuts your logistics cost dramatically. The HDPE lid and PP plastic box sleeves are 100% recyclable, so you meet sustainability goals with ease. Partner with Enlightening Pallet, and you gain more than a container—you gain a dependable factory partner for every sleeve pack and pallet sleeve box solution you need.

Technical Parameters

• External Dimensions: 1100 × 1100 mm
• Internal Dimensions: 1050 × 1050 mm
• 40’HQ Container Loading: 400 sets
• Static Load: 1 + 2 stackable layers
• Dynamic Load: 1 + 1 stackable layers
• Pallet Base: Double-layer thermoformed nine-feet pallet, 4-way entry
• Sleeve Material: PP honeycomb board (detachable, foldable, optional small access door)
• Lid Material: HDPE (optional 2 or 4 embedded steel tubes)
• Pallet Weight: 10 kg
• Lid Weight: 8 kg
• Locks: Yes
• Return Ratio (Sleeve Only): up to 1:8
• Return Ratio (Complete Set): up to 1:5
• Recyclability: 100% recyclable

Customization Options

We provide a wide range of customization choices to make every pallet sleeve box solution fit your exact operational needs.

• Dimensions & Volume: external size, internal volume, adjustable height (e.g. 1200×1000 mm, 1100×1100 mm, 1140×1140 mm).

• Structure: pallet base (nine-feet, double-layer thermoformed, flat deck), lid type (recessed lid or raised corners reinforced), sleeve design (single-piece or multi-piece), access doors optional.

• Materials: pallet & lid in HDPE or PP, sleeve in PP hollow board or PP honeycomb board.

• Reinforcement: optional steel pipes in lid (2, 4, or full frame).

• Functions: load capacity levels (static, dynamic, stacking), fold ratio, return ratio, anti-static, flame-retardant, waterproof.

• Branding & Colors: customized colors, logo printing (silk-screen, hot stamping, IML), barcode, QR code, RFID.

• Logistics Configuration: forklift entry (2-way / 4-way), stacking height options, container loading optimization, locks, corner protection.

With Enlightening Pallet, your pallet sleeve box can be customized in size, material, structure, and branding, giving you a tailored sleeve pack solution that truly fits your logistics.
