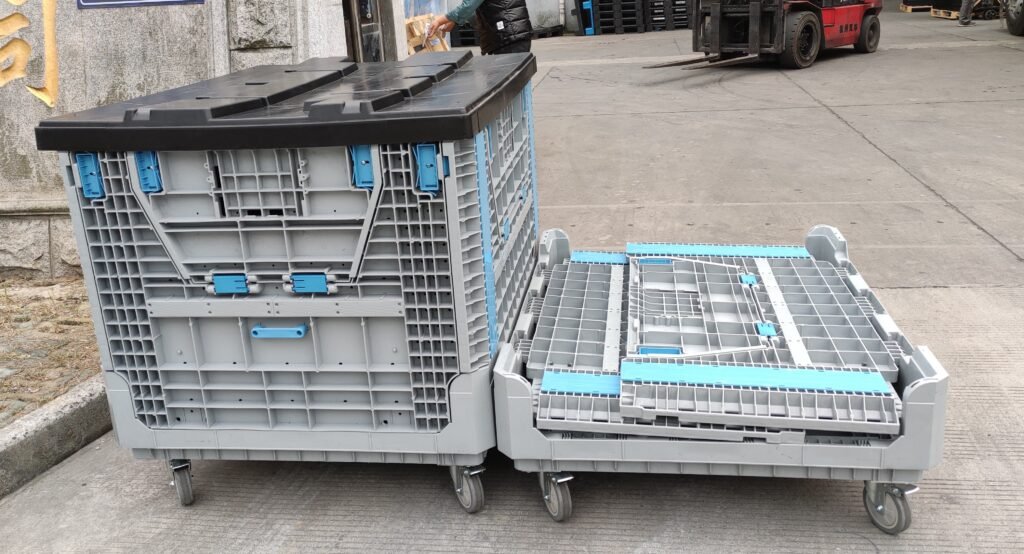

Plastic Pallet Box on Wheels

Product Features

• Heavy-duty HDPE/PP construction
• 4-way forklift entry
• 4-way pallet jack entry
• Optional 4 wheels fitted to the bottom
• X-braced base reinforcement to reduce flex under load
• Low folded profile (380 mm) for higher return-load efficiency
• Collapsible design for return transport
• Secure locking latches for fast fold/unfold
• 4 access doors for quick picking
• Rib-reinforced sidewalls for higher stiffness and puncture resistance
• Impact-protection corner blocks to resist handling damage
• Stackable Lid accessory available, stackable up to 5-high

Product Specification

Parameter	Model A	Model B
Materials	HDPE, PP	HDPE, PP
Diameter size (mm) (outer dimension)	1200×1000×975	1200×1000×1050
Lnner diameter size (mm) (inner dimension)	1120×920×800	1120×920×870
Folded height (mm)	380	380
Weight (KG)	70KG	70KG
External dimensions with lid (mm)	1200×1000×430	1200×1000×430
Dynamic load	1T	1T
Static load	5T	5T
Forklift	4 Way Entry	4 Way Entry
Pallet Jack	4 Way Entry	4 Way Entry
Usage Temperature	-40℃ to 70℃	-40℃ to 70℃
Access Door	4	4
Base	2-Runner Base	2-Runner Base
Color	Yellow, Blue, Red, Green, Black, White, Custom	Yellow, Blue, Red, Green, Black, White, Custom
Logo / Printing	Yes	Yes
Accessory	Lid	Lid
Accessory	4 Wheels Added to Bottom	4 Wheels Added to Bottom
Reusable	Yes	Yes
Quality Standard	ISO 9001, SGS, ROHS, FDA, CE, REACH,UN, CTT, EN-840, GRS	ISO 9001, SGS, ROHS, FDA, CE, REACH,UN, CTT, EN-840, GRS

Customizable Options

1. Custom colors and logo printing available
2. Door layout can be adjusted (2 opposite doors or 2 adjacent doors)
3. Non-Wheel collapsible pallet boxes are available
4. Other sizes are available to match your footprint and workflow
5. Steel tube reinforcement or thicker ribs can be added for higher rigidity
6. Additives available: UV-resistant, anti-freeze, chemical-resistant, flame-retardant
7. Optional barcode / QR code / RFID identification for traceability
