How Many Pallets Fit On a Truck

Ever wondered why one truckload sometimes means 26 pallets and other times 30? Misjudge it, and you’re not just short two pallets—you might be paying for a whole extra truck. A 53ft trailer usually fits 26–30 pallets, a 48ft fits 24–28, and a 26ft box truck takes 12–14, or up to 28 stacked.

The difference isn’t luck—it’s how pallets are sized, placed, and stacked. In this guide, written from a pallet manufacturer’s view, we’ll show you the real math behind truck capacity, the loading methods that squeeze in extra rows, and the hidden limits like overhang or weight laws. By the end, you’ll plan loads with confidence—and stop paying to ship empty air.

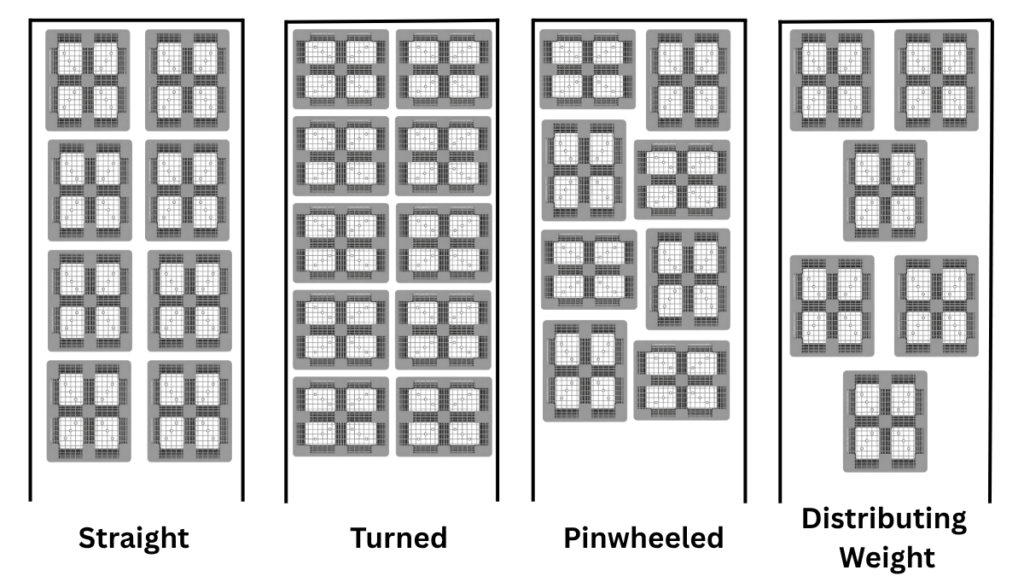

What Loading Methods Determine Pallet Capacity?

The way pallets are placed inside the truck explains why the number changes. Each method uses space differently and may need different equipment.

Straight Loading

Pallets face lengthwise, with the 48-inch side along the truck. Two pallets sit side by side, row after row. Any pallet jack can handle this, which makes it the most common style. But unused width means fewer rows fit compared to other layouts.

Sideways Loading

The 40-inch side faces the truck length. This lets you squeeze in more rows within the same space. Block pallets work well, but stringer pallets need a forklift or jacks with side forks. It improves capacity but adds handling limits.

Pinwheel Loading

Rows alternate between straight and sideways, forming a “pinwheel.” It closes gaps and gains a couple of extra pallets. The method saves space but slows loading speed, and it requires more careful placement to avoid misalignment.

Stackable Loading

When goods are stable and the roof height allows, pallets can be stacked in two layers. A 53ft trailer that holds 26 on the floor can carry 52 stacked. It’s efficient, but only safe if products can take the weight and weight limits are respected.

How Many Pallets Fit on a 53-Foot Truck?

Figuring out how many pallets you can load into a 53-foot truck is crucial for planning your shipments and controlling costs. The answer depends on your pallet size and how you arrange them. Let’s walk through the most common scenarios to help you maximize your truck space.

First, here are the basics: A standard 53-foot trailer offers approximately 636 inches in length, 102 inches in width, and 110 inches in height. Now let’s see how different pallet sizes fit inside.

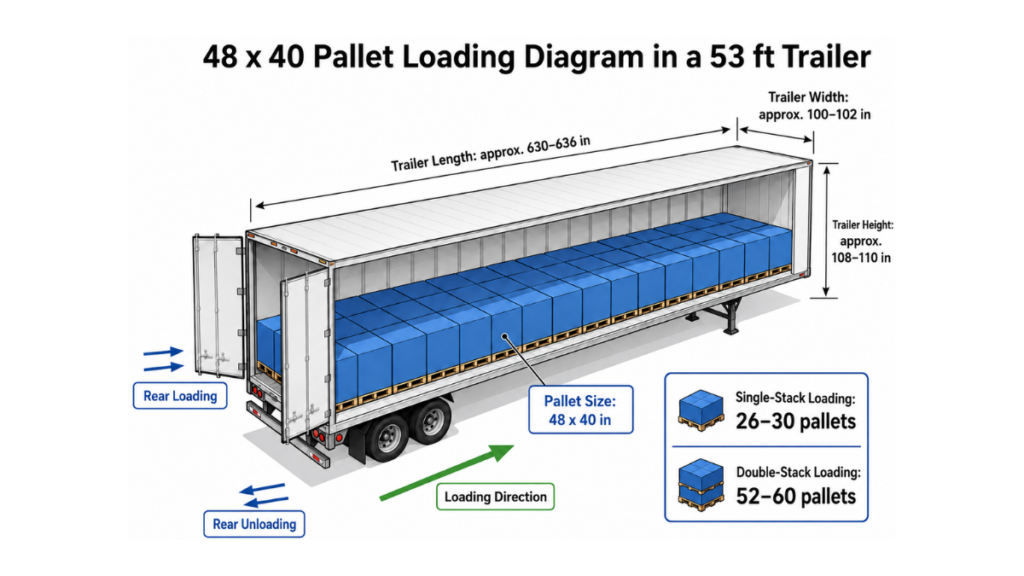

How Many 48×40 Pallets Fit In a 53-Foot Truck?

The 48×40 pallet (also known as the GMA pallet) is North America’s most popular size. You’ll typically fit 26 to 30 pallets per truckload in a single layer, or up to 52 pallets when double-stacked.

Straight Loading (26 pallets)

Place each pallet with its 48-inch side parallel to the trailer’s 636-inch length. This means the pallet’s longer dimension aligns with the truck’s longer dimension. You can fit 2 pallets side-by-side across the 102-inch width, and 13 rows fit lengthwise. This gives you 2 × 13 = 26 pallets total.

Pinwheel Loading (28 pallets)

By alternating pallet orientations—mixing long-side-forward and short-side-forward placements—you can fill those awkward gaps more efficiently. This pattern typically yields around 28 pallets.

Turned Loading (30 pallets)

Rotate every pallet 90 degrees so the shorter 40-inch side is parallel to the trailer’s 636-inch length. Now you can fit 15 rows instead of 13, giving you 2 × 15 = 30 pallets.

Double-Stacking

If you’re shipping lighter products on heavy-duty pallets, you might stack a second layer and reach up to 52 pallets. Just make sure your total height stays under 110 inches and your weight doesn’t exceed legal axle limits.

But if you’re using recycled material plastic pallets, we don’t recommend double-stacking them on top. Recycled pallets typically have a dynamic load capacity of no more than 1.5 tons, so they work best as bottom-layer base pallets only. For upper layers, choose virgin material pallets with higher load ratings to ensure safe transport.

How Many 42×42 Pallets Fit In a 53-Foot Truck?

The 42×42 pallet is square and commonly used in telecommunications, paint, and chemical industries. You can typically load 24 to 28 pallets in a 53-foot truck.

Straight Loading (24 pallets): Position pallets with one side along the trailer’s length. You’ll fit 2 pallets across the width and 12 rows lengthwise, totaling 2 × 12 = 24 pallets.

Optimized Loading (26-28 pallets): Because these pallets are square, you have more flexibility in arranging them. With strategic placement and tight spacing, you can sometimes fit 26 to 28 pallets, especially if you’re willing to use every inch of available space.

How Many 48×48 Pallets Fit In a 53-Foot Truck?

The 48×48 pallet is another square option, popular in drums, barrels, and bulk chemical shipping. You’ll generally fit 24 to 26 pallets per truck.

Standard Loading (24 pallets): With 2 pallets across and 12 rows deep, you get 2 × 12 = 24 pallets.

Tight Loading (26 pallets): By minimizing gaps and arranging pallets carefully, some shippers manage to squeeze in 26 pallets, though this requires precise placement and may not always be practical.

How Many 40×48 Pallets Fit In a 53-Foot Truck?

This is the same as the 48×40 GMA pallet, just with dimensions listed in reverse order. The loading capacity remains 26 to 30 pallets depending on orientation—refer to the 48×40 section above for detailed loading methods.

How Many 48×45 Pallets Fit In a 53-Foot Truck?

The 48×45 pallet is used in automotive and some grocery applications. You can typically load 26 to 28 pallets.

Straight Loading (26 pallets): Place the 48-inch side lengthwise. Two pallets fit across, and you’ll get about 13 rows, giving you 2 × 13 = 26 pallets.

Adjusted Loading (28 pallets): With careful arrangement and minimal gaps, some configurations allow for 28 pallets.

How Many 36×36 Pallets Fit In a 53-Foot Truck?

Smaller 36×36 pallets are used in beverage and dairy industries. You can fit significantly more—typically 32 to 36 pallets per truck.

Standard Loading (32 pallets): Two pallets across the width and 16 rows in length gives you 2 × 16 = 32 pallets.

Optimized Loading (36 pallets): With tight spacing and efficient arrangement, you may reach 36 pallets, maximizing your smaller footprint.

How Many Euro Pallets (48×32) Fit In a 53-Foot Truck?

Euro pallets measuring 48×32 inches are less common in North America but sometimes used. You can typically load 30 to 33 pallets.

Lengthwise Loading (30 pallets): Position the 48-inch side along the length. You’ll fit 2 across and 15 rows deep: 2 × 15 = 30 pallets.

Mixed Loading (33 pallets): By alternating orientations strategically, you can sometimes fit 33 pallets.

How Many Pallets Fit on a 48-Foot Trailer?

A 48ft trailer usually carries 24 to 28 standard 48×40 pallets. That is slightly fewer than a 53ft truck, which holds 26 to 30, because the trailer is 60 inches shorter.

Straight Loading: With the 48-inch side placed along the 576-inch length, two pallets fit across the 102-inch width. Twelve rows fit down the trailer, so the total is 24.

Pinwheeled Loading: Alternating the long and short sides helps close gaps. This pattern usually adds two more pallets, giving you 26 in total.

Sideways Loading: When the 40-inch side faces the trailer length, 14 rows can fit instead of 12. That makes the count 28, which is the maximum in a 48ft trailer without stacking.

How Many Pallets Fit on a 26ft Box Truck?

A 26ft box truck usually carries 12 to 14 pallets in one layer, or 24 to 28 pallets if stacked. It is smaller than long-haul trailers and is often used for local deliveries, so planning space well makes a big difference.

Single Layer
The trailer length is 312 inches. With pallets set at 48 inches long, six rows fit. Two pallets across the 96-inch width give you 12 total. If you rotate them so the 40-inch side faces forward, seven rows fit, reaching 14 pallets.

Double Layer
If pallets are heavy-duty and goods are stable, you can place another layer. This doubles the load to 24–28 pallets, but only if total height stays under the 96-inch roof and the weight is within limits.

Empty Pallets Only
When shipping pallets themselves, stacking changes the math. With each pallet about 6 inches thick, you can load 192–224 empty pallets in a 26ft truck.

Safety and Efficiency
Stacking saves space, but only when products are stable. Always leave clearance under the roof and balance the weight. For short-haul trucks like the 26ft, also keep in mind that easy loading and unloading is often more valuable than squeezing in one extra pallet.

How Many Pallets Fit in 16ft, 24ft, 40ft, and 45ft Trucks?

Not every shipment goes into a 53ft or 26ft truck. Medium box trucks and international containers are also widely used in freight. The numbers below show single-layer capacity only, based on standard 48×40 pallets without stacking.

Truck / Container	Pallet Count (Single Layer)	Notes
16ft Box Truck	6–8 pallets	Local delivery, limited space
24ft Box Truck	12–14 pallets	Often used in regional transport
40ft Container	20–24 pallets	Standard in ocean shipping
45ft Cube Container	24–26 pallets	More space than 40ft, used for international routes

Does Pallet Size Change Truck Capacity?

Yes, pallet size directly changes how many pallets fit in a truck. A standard 48×40 pallet gives the most flexibility, but other common sizes create different totals.

Pallet Size	53ft Trailer	48ft Trailer	26ft Truck	Notes
48×40 (GMA)	26–30 (52 stacked)	24–28	12–14 (24–28 stacked)	Most efficient, supports all loading patterns
48×48	26	24	12	Square shape, no gain from pinwheel
42×42	30	28	14	Square but smaller footprint, higher count
48×45	26–28	24–26	12–13	Wider footprint, common in automotive

How to Calculate Pallet Capacity for Any Truck Size?

If you ever want to figure it out yourself instead of checking a chart, the math is simple. With just the truck’s inside dimensions and the pallet size, you can get a quick answer.

Formula (single layer):
(Truck length ÷ Pallet length) × (Truck width ÷ Pallet width)

For stacking:
Single layer result × (Truck height ÷ Pallet height)

Example for 53ft truck with 48×40 pallets:

• Length: 636 ÷ 48 = 13 rows
• Width: 102 ÷ 40 = 2 pallets across
• Single layer = 13 × 2 = 26 pallets
• With stacking (110 ÷ 48 ≈ 2 layers): 52 pallets

This way, you can check any truck size in seconds, as long as you know the inside length, width, and height.

Other Factors That Limit Pallet Loading

You may already know pallet size and stacking change the numbers, but they’re not the whole story. In real shipping, weight, overhang, and legal limits often decide whether all those pallets can actually fit.

Weight Restrictions: A truck may “weigh out” before it “cubes out.” Heavy goods can hit the legal weight limit with fewer pallets.

Pallet Overhang: If boxes extend even 2–3 inches beyond a pallet, an entire row may not fit, forcing you to remove pallets.

Safety and Compliance: Axle load balance, roof clearance, and door access all matter. Overloading or poor distribution risks fines, accidents, and damaged goods.

Conclusion

A standard 48×40 pallet usually means 26–30 in a 53ft truck, 24–28 in a 48ft, and 12–14 in a 26ft box truck. These numbers define what a full load really is and give you a clear baseline for planning. Knowing how many pallets fit on a truck is not just about numbers—it’s about saving freight costs, protecting goods, and planning with certainty.
