Stacking a pallet isn’t rocket science—until one collapses mid-aisle and wipes out a $10,000 shipment. Most blame the forklift. But as pallet manufacturers, we’ve seen it start with mismatched boxes, unstable patterns, or the wrong pallet base.
This guide isn’t about stacking taller—it’s about stacking smarter. You’ll learn how to sort loads, choose the right pattern, avoid pyramid traps, and stack safely with forklifts or in trucks. And more importantly, we’ll show you why engineered plastic pallets outperform wood when it comes to load stability, safety, and long-term cost control.
Why Proper Pallet Stacking Is Critical for Warehouse Safety and Efficiency
Improper pallet stacking can cause serious operational losses, including:
- Collapsed loads during storage or transit
- Injured workers and forklift accidents
- OSHA violations and regulatory fines
- Denied insurance claims for damaged goods
- Full-aisle shutdowns and delayed shipments
These failures often trace back not just to handling errors, but to the pallet itself—cracked runners, warped decks, or mismatched sizes silently undermine load stability. From our experience as pallet manufacturers, we’ve seen perfectly trained teams fail simply because the base wasn’t engineered for stacking.
To prevent these failures, stacking must follow a clear set of steps—not just instinct or habit.
How to Stack Pallets In A Warehouse: Step-by-Step Best Practices
Step 1: Sort Your Cartons By Size and Weight
Before stacking, separate all cartons based on their size, weight, and surface condition. Group similar cartons together to avoid gaps and uneven layers.
Heavy units should be placed aside for the base layer.
Avoid mixing lightweight and dense boxes on the same row—this often leads to compression damage and instability.
Before moving to the next step, make sure the combined weight of these cartons stays within your pallet’s load rating.
For example, Enlightening Pallet’s 3-runner 48×40 plastic pallet typically supports up to 1,500 kg (3,307 lbs) in dynamic load—do not exceed this limit during stacking.
Step 2: Choose the Right Stacking Pattern
After sorting, decide how you will place the boxes or bags. The following patterns apply to both carton and bagged goods.

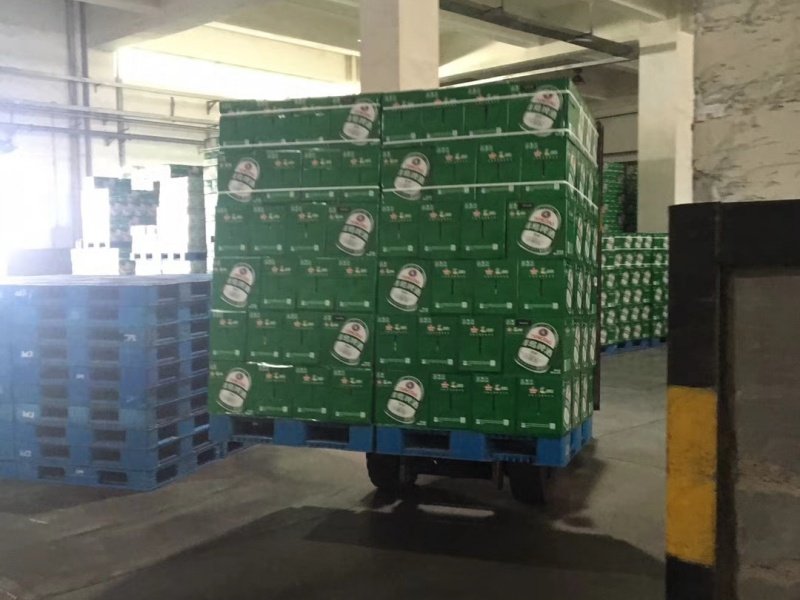

If your cartons are identical in size, use a column pattern: place each box directly on top of the one below it, forming straight vertical lines. This maximizes stacking strength and makes the load easier to wrap.
If your boxes vary in size or don’t stack evenly, switch to a brick or interlocking pattern: By shifting each layer so box edges sit over the center of the ones below. You can also rotate every other layer 90 degrees. These methods reduce side movement. Stick to one pattern per stack—don’t mix styles mid-way.
Once you begin a pattern, follow it consistently to the top—do not mix patterns midway, as this weakens the structure.
Step 3: Stack Each Layer with Full Stability
Start with the heaviest and flattest boxes at the base. Align each unit tightly against the pallet edges with no overhang or gaps. Avoid leaving empty space in the center—this weakens the structure and increases the risk of collapse. If your load includes mixed shapes, use smaller cartons or fillers to build a flat base before continuing.
Continue stacking upward with even pressure, keeping the load square and vertical. Check alignment after every two layers—look for leaning or bulging edges. If the stack begins to shift, stop and adjust before continuing. For mixed loads, pay attention to edge stability: loose corners or uneven weight can cause toppling under stress.
If you’ve completed a full top layer—for example, stacking 36 boxes in 3 full layers of 12—don’t add the remaining 2 just to fill space. An uneven top weakens wrap tension and creates risk during handling. Start a new pallet or secure them separately.
Uneven tops reduce wrapping strength and compromise load stability; if needed, use empty cartons or a pallet cap to maintain a flat top for wrapping.
Step 4: Limit the Total Stack Height to Operational Safety Standards
In most warehouses, 48–60 inches is the maximum safe stack height. Taller stacks increase tipping risk, obstruct forklift operator view, and apply more pressure on the bottom layer. If your stack rocks when gently pushed, reduce one or two layers and recheck its integrity.
So, how high can you stack pallets？Pleause Recommended stacking height limits:
- Boxed goods: 5 to 8 layers per pallet; repeatable up to 3 pallet heights

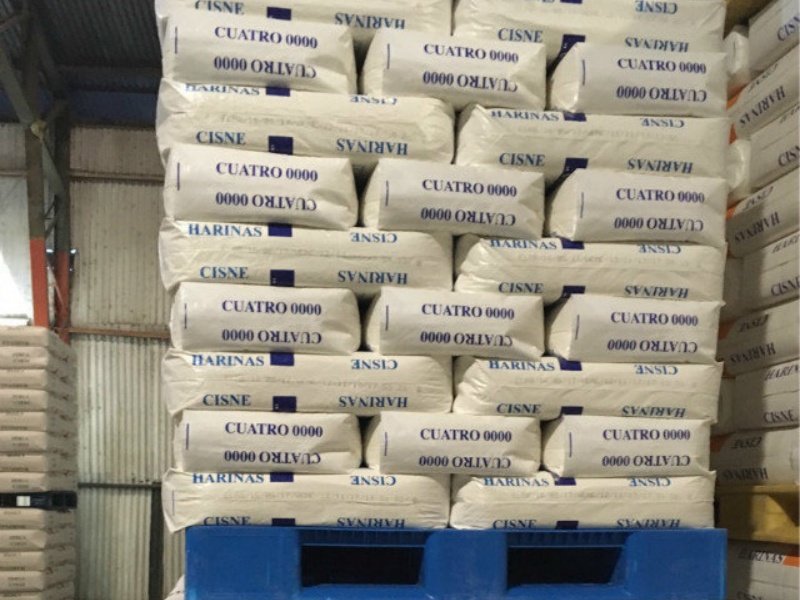

- Bagged goods: 10 to 12 layers per pallet; also repeatable up to 3 pallet heights
Note: Plastic pallets with 9-leg designs are more prone to center sagging under heavy static loads. For better support, use 3-runner or double-face pallets, or reinforce the center with a flat board.
Step 5: Wrap and Secure the Load for Storage or Transport
Begin wrapping from the base. Anchor the stretch film by circling the pallet’s bottom 3–4 times, covering both the load and about 2 inches of the pallet’s edge.
Wrap each layer so the film overlaps the previous one by half its width for better hold. At the top, fold excess film over the top surface and make a few final passes around the middle section to lock everything in. Never wrap loosely—slack film allows lateral shifting during forklift handling or transport.
In long-distance shipping, add two cross straps or load bars after wrapping. Skipping these steps often leads to tilt, damaged corners, or complete load failure during acceleration or braking.

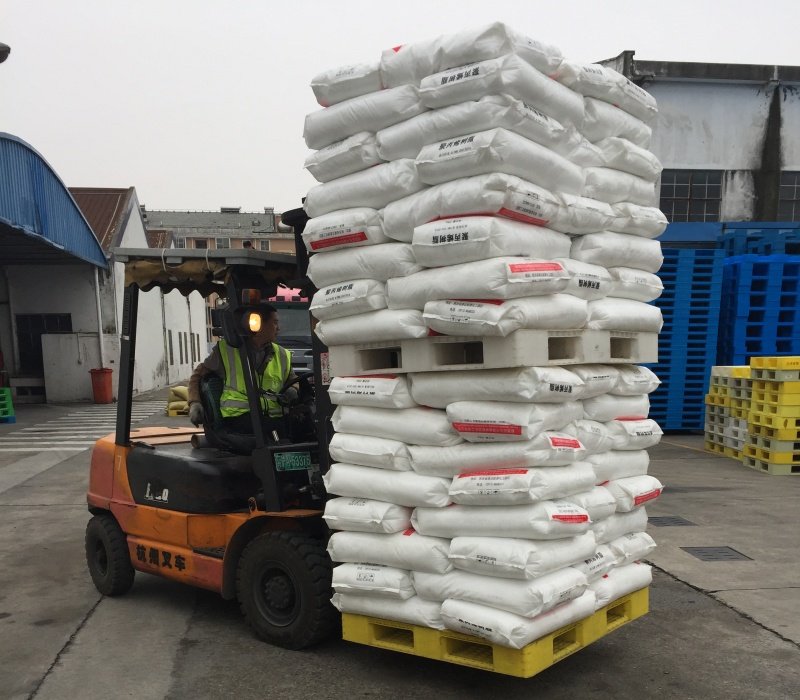

How to Stack Pallets with a Forklift
Forklift stacking starts with understanding the dynamic load limits of your pallets. A typical double-face plastic pallet with steel reinforcement supports up to 1.5 toneladas while in motion. Based on this:
For bagged goods: stack 2 pallets high, each layer holding 8–10 bags securely.
For cartons: stack up to 5–7 layers, and always tie down the top layer to prevent shifting.
When operating a forklift:
- Approach the pallet at a 90-degree angle.
- Keep forks level and maintain full visibility.
- Lower the load slowly, avoiding forward tilt during placement.
To minimize damage and improve precision, choose pallets with chamfered fork entry points or reinforced corners. These features help align forks more smoothly and reduce long-term abrasion. In high-bay applications, make sure your pallet structure is rated for cumulative vertical load, especially during multi-level stacking.

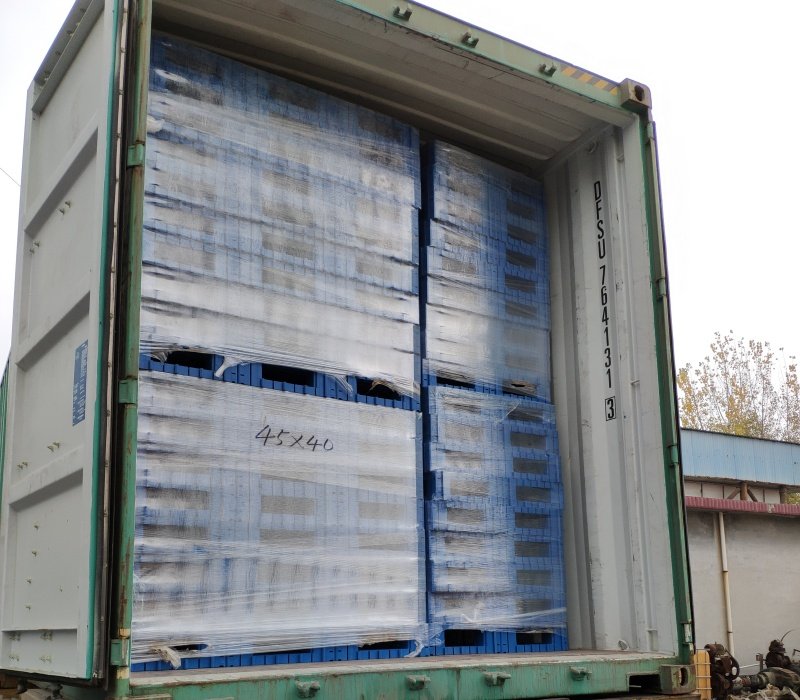

How to Stack Pallets in a Truck
When loading trucks, the goal is to maintain centered weight distribution from front to back and side to side. Start by placing pallets flush with the truck wall and build outward evenly.
Use high-load-capacity pallets, such as double-face plastic pallets, to withstand road vibrations and long-haul compression. Avoid overhanging cartons—excess width may trigger reclassification or cause cargo shift.
Secure each row with lateral straps or load bars to prevent pallet movement during acceleration or braking. For cold chain or export shipments, consider anti-slip mats or corner stabilizers to reduce sliding.
Pallets with closed decks or racking-compatible bottoms offer greater surface support, reducing collapse risks on uneven flooring or metal grates inside the trailer.
Build More Stable Stacks with Engineered Plastic Pallets
Whether you’re operating a distribution center, managing export shipments, or supplying retail chains, stacking errors cost you time, money, and product integrity. And most of those errors start at the pallet level. That’s where we come in.
Enlightening Pallet as a plastic pallet and container manufacturer with years of experience serving logistics, warehousing, and industrial operations across Asia, North America, and beyond—we offer more than just products. We tailor each recommendation based on your use case, load type, and stacking method, so you never pay for what you don’t need, and never miss what you do.
✅ Need support choosing between Reversible or 3-runner designs?
✅ Want to reduce wrapping waste or prevent shifting during international shipping?
✅ Looking for pallets that align with your automation line or cold chain logistics?
Talk to us. We’ll help you build the right stacking solution—efficient, cost-effective, and built to last.
